IDS 150 PP Mini Servo Rotary Pouching System (2 Units Available)

Description

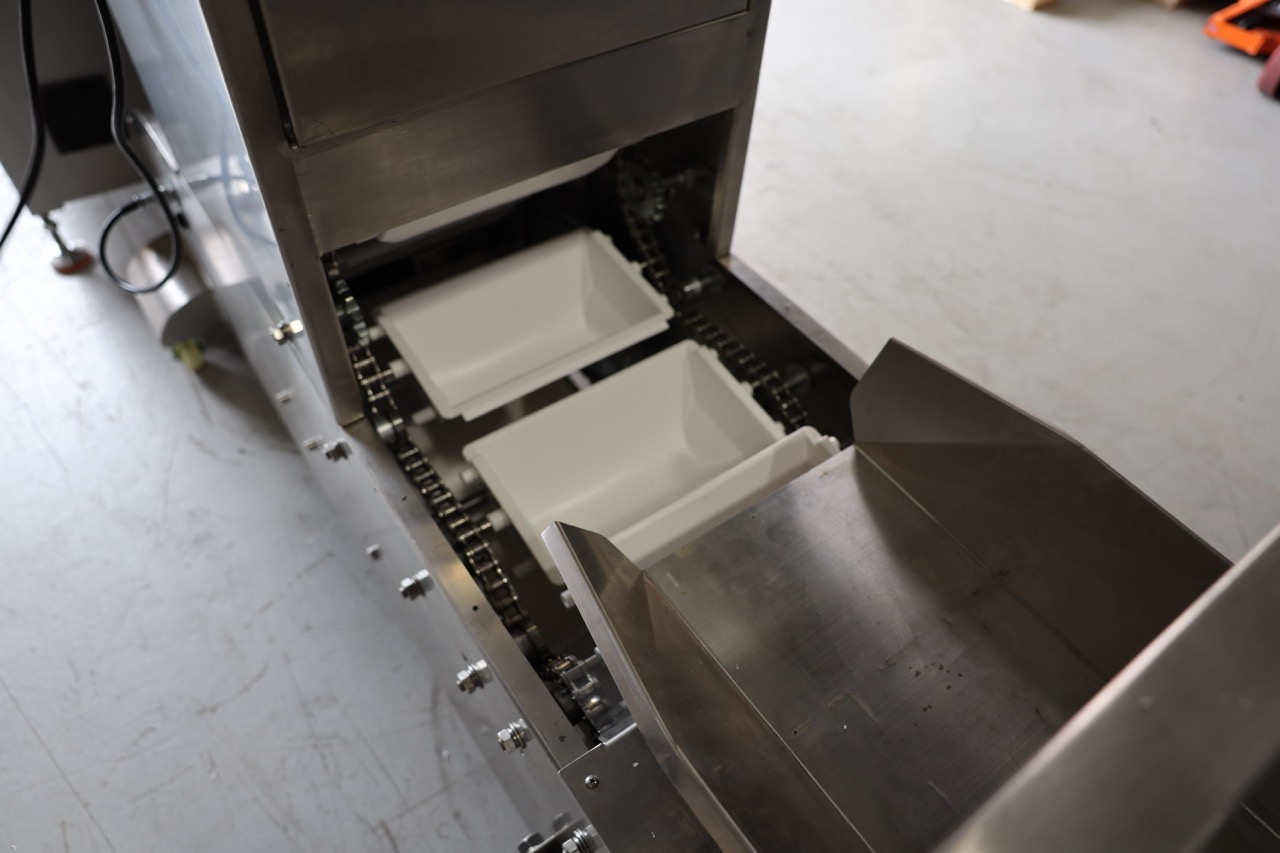

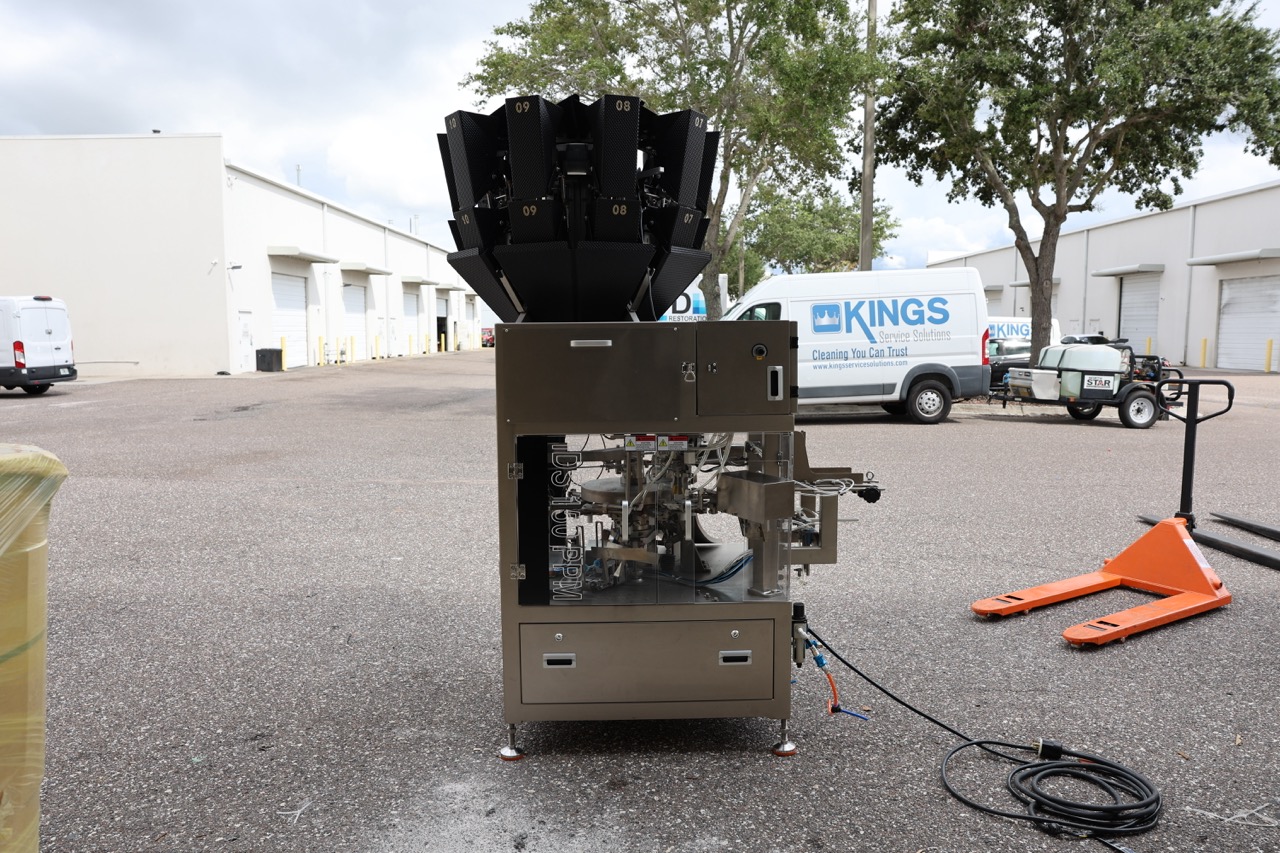

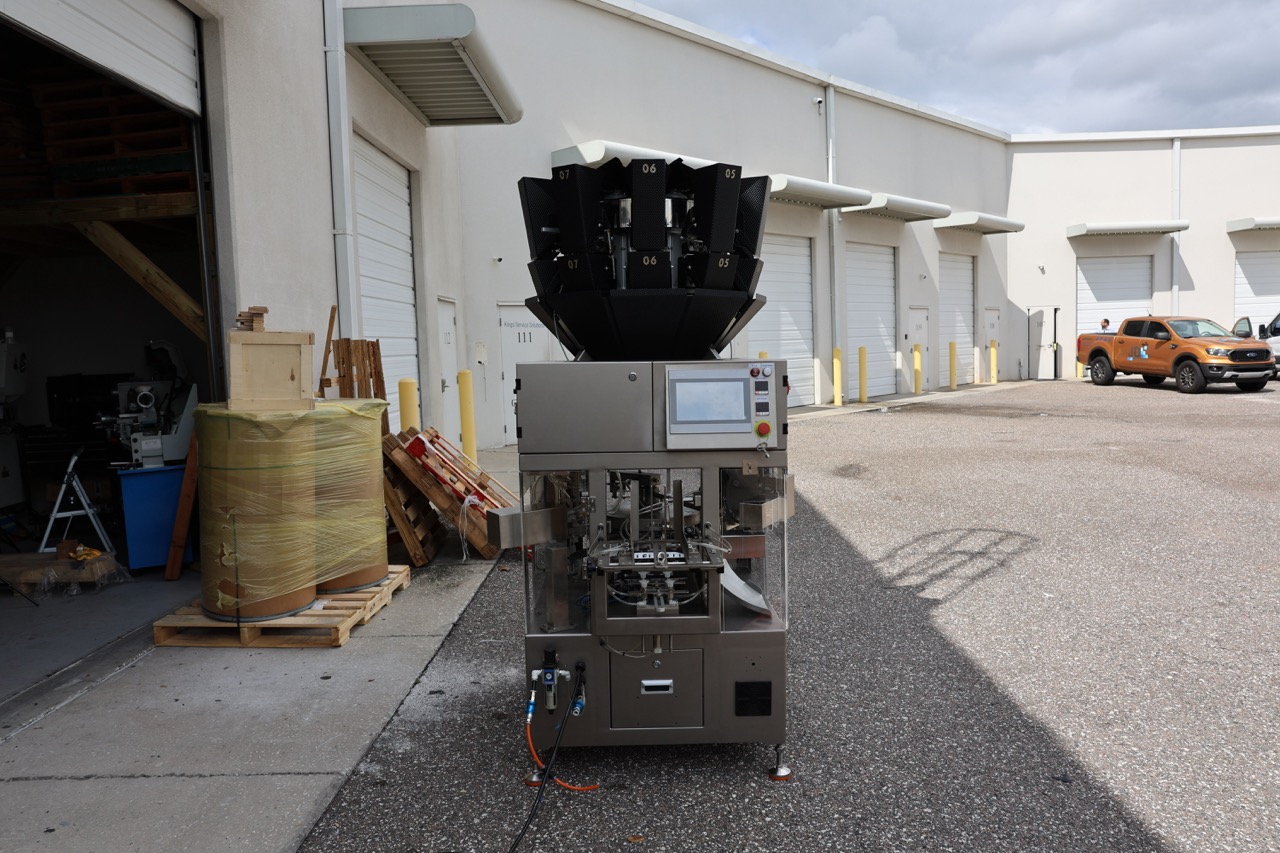

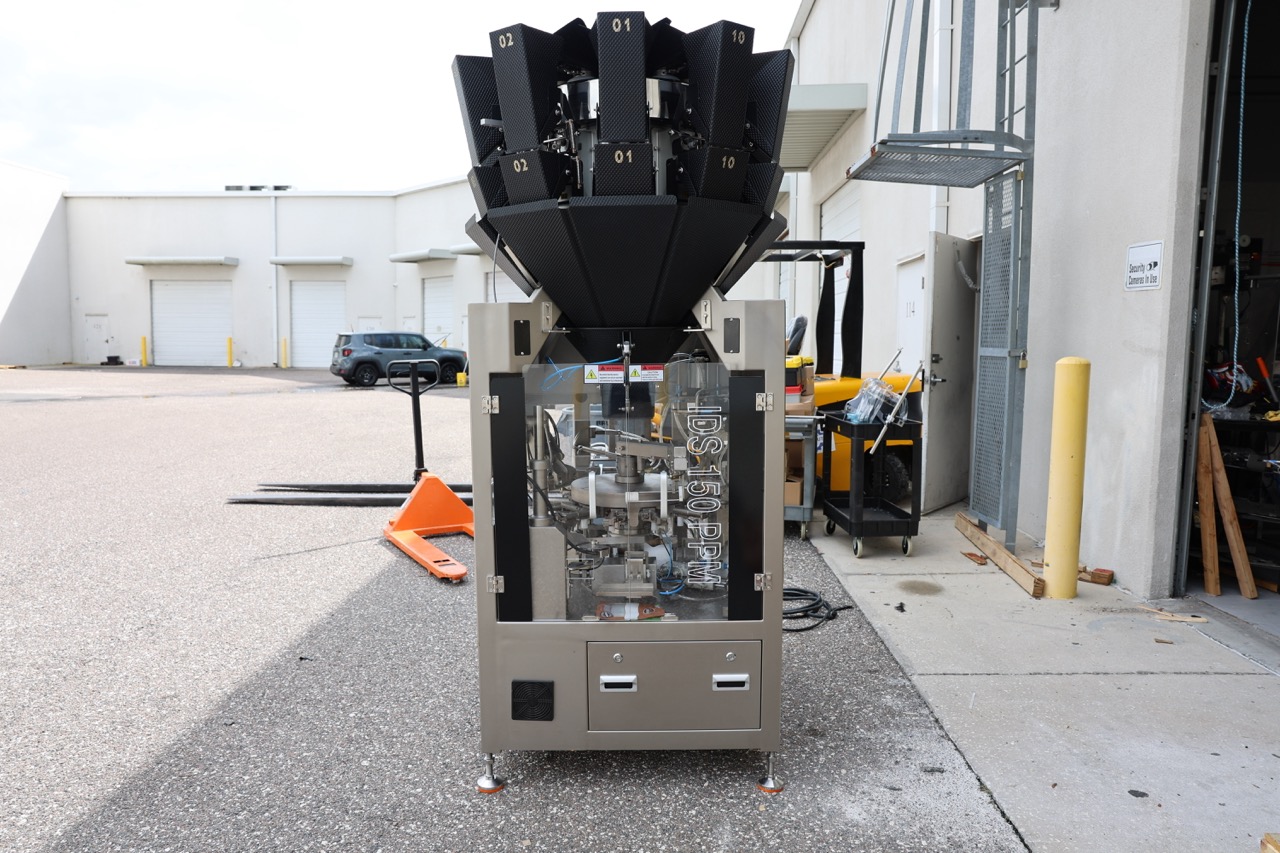

• System Overview: Full turnkey packaging system pairing the Ideal Solution IDS 150 PP rotary poucher with a 10-head combination weigher (1.5L capacity per head) and an integrated Z-style bucket elevator feeder. Engineered for snacks, dry foods, powders, and nutraceuticals.

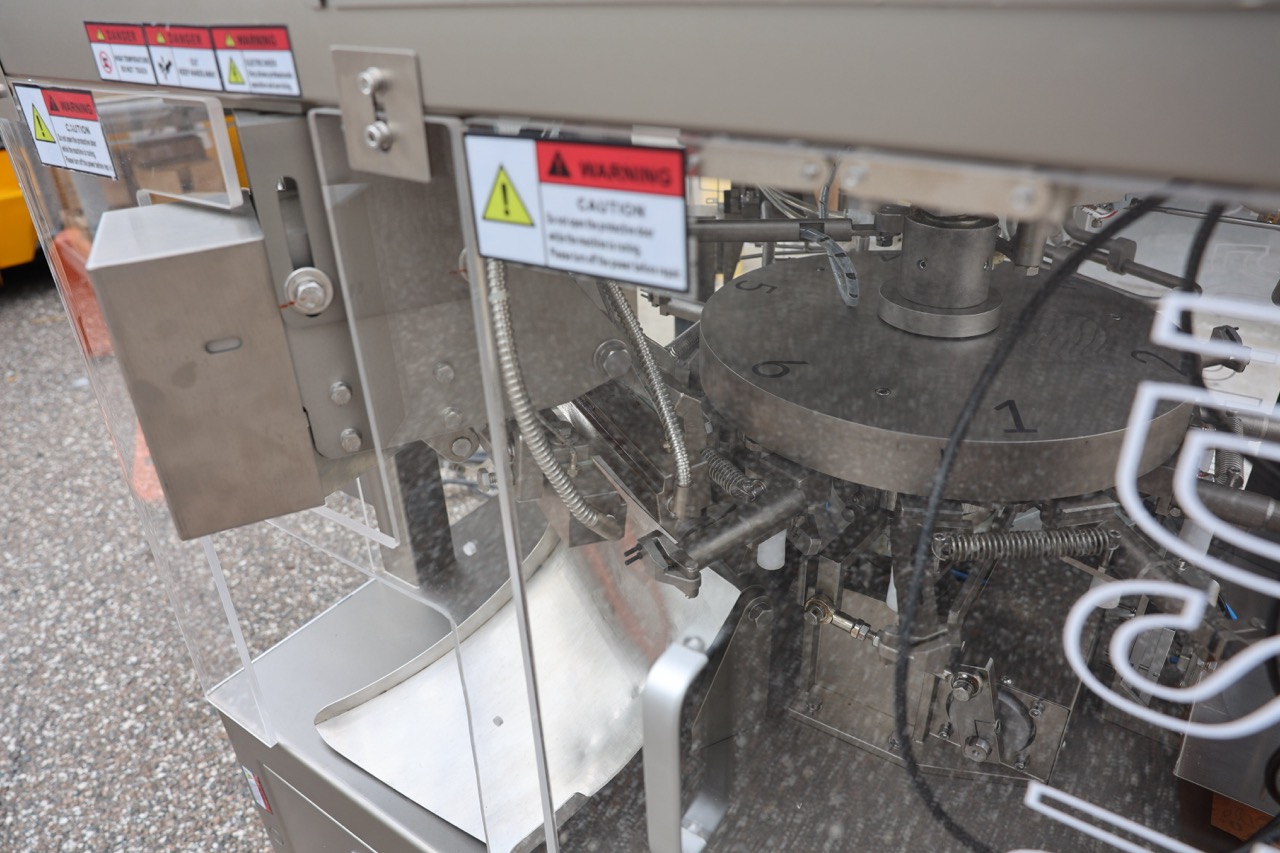

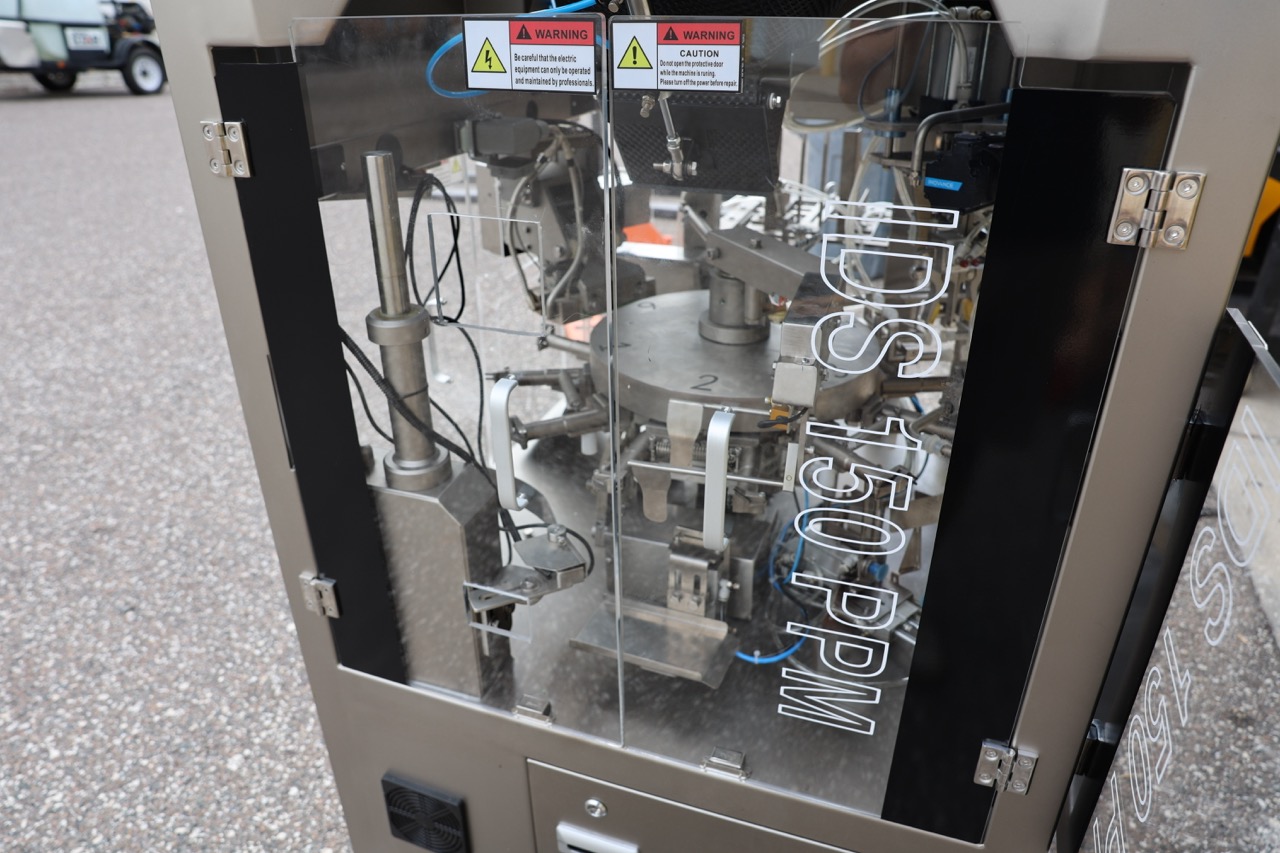

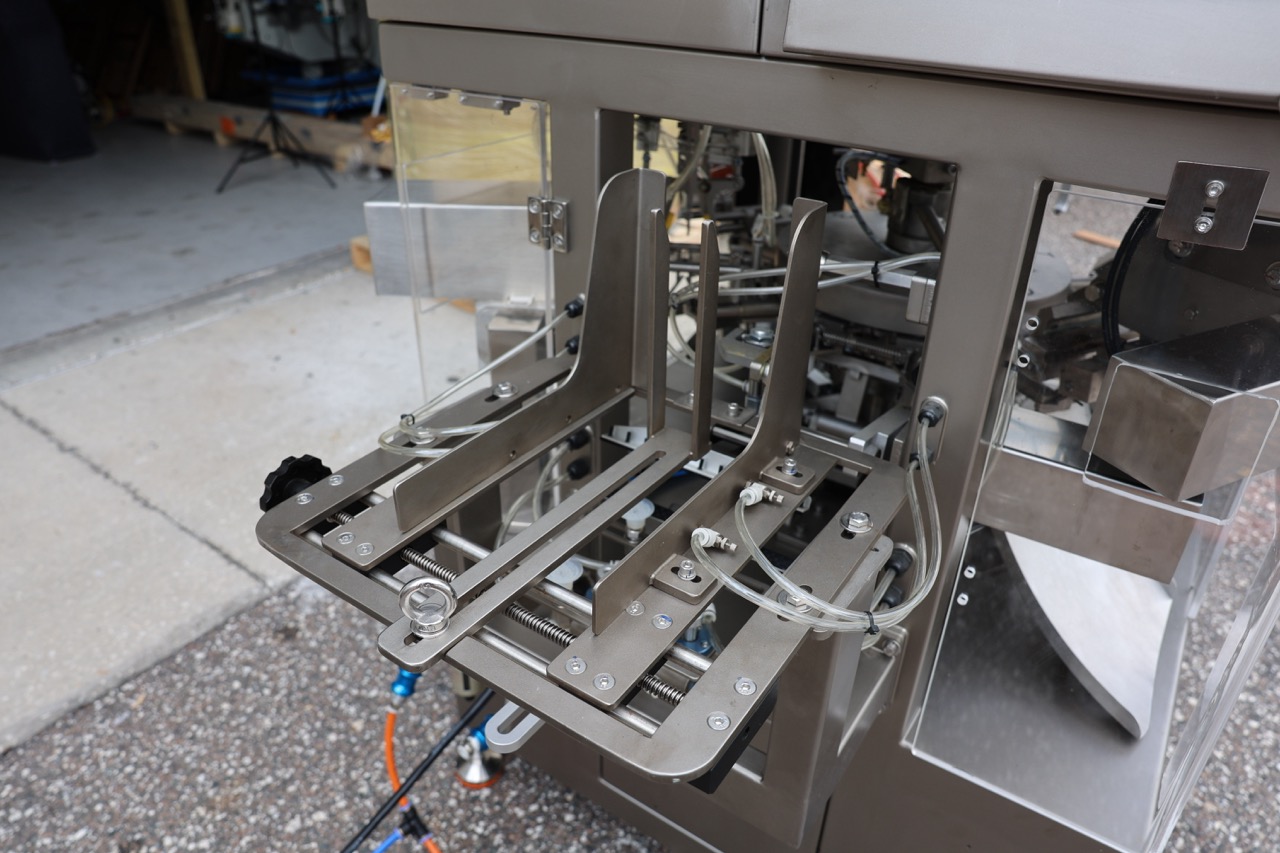

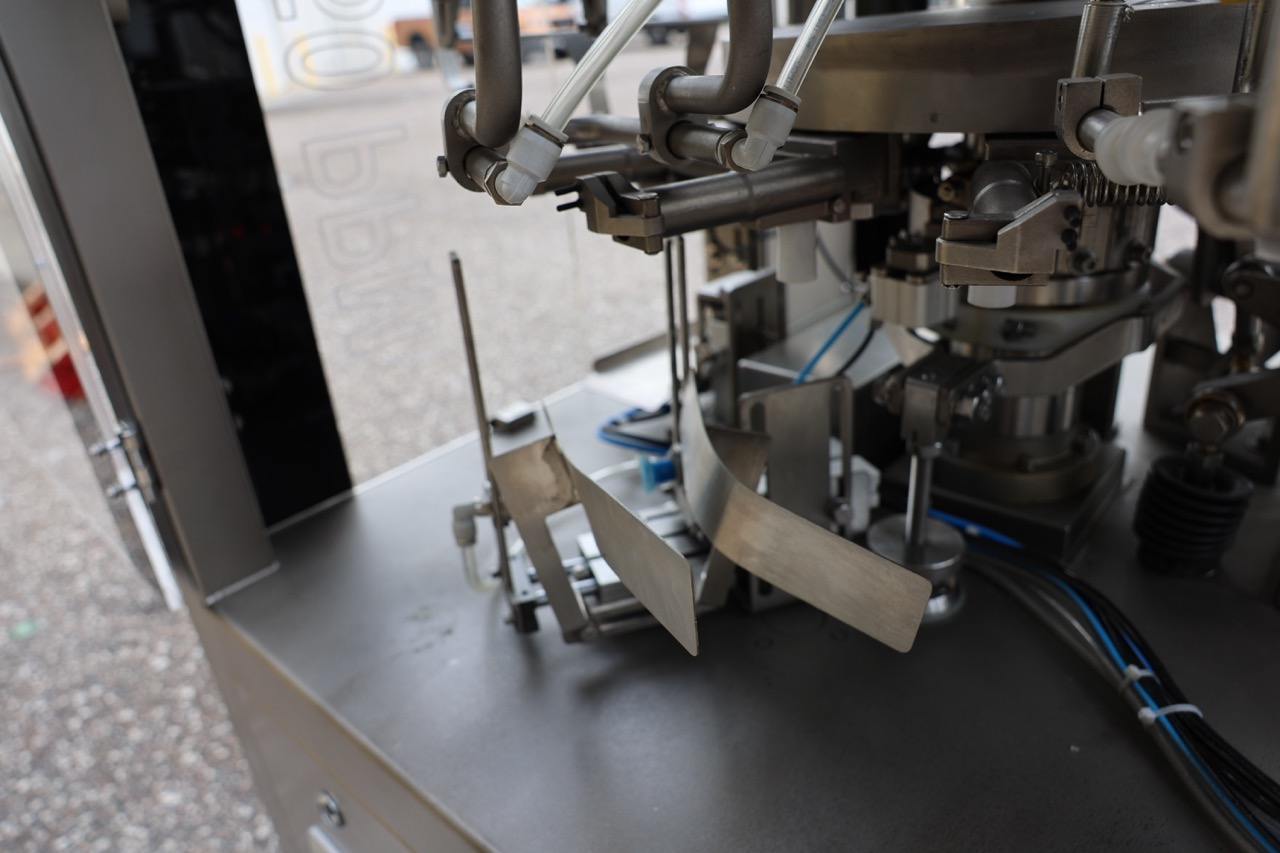

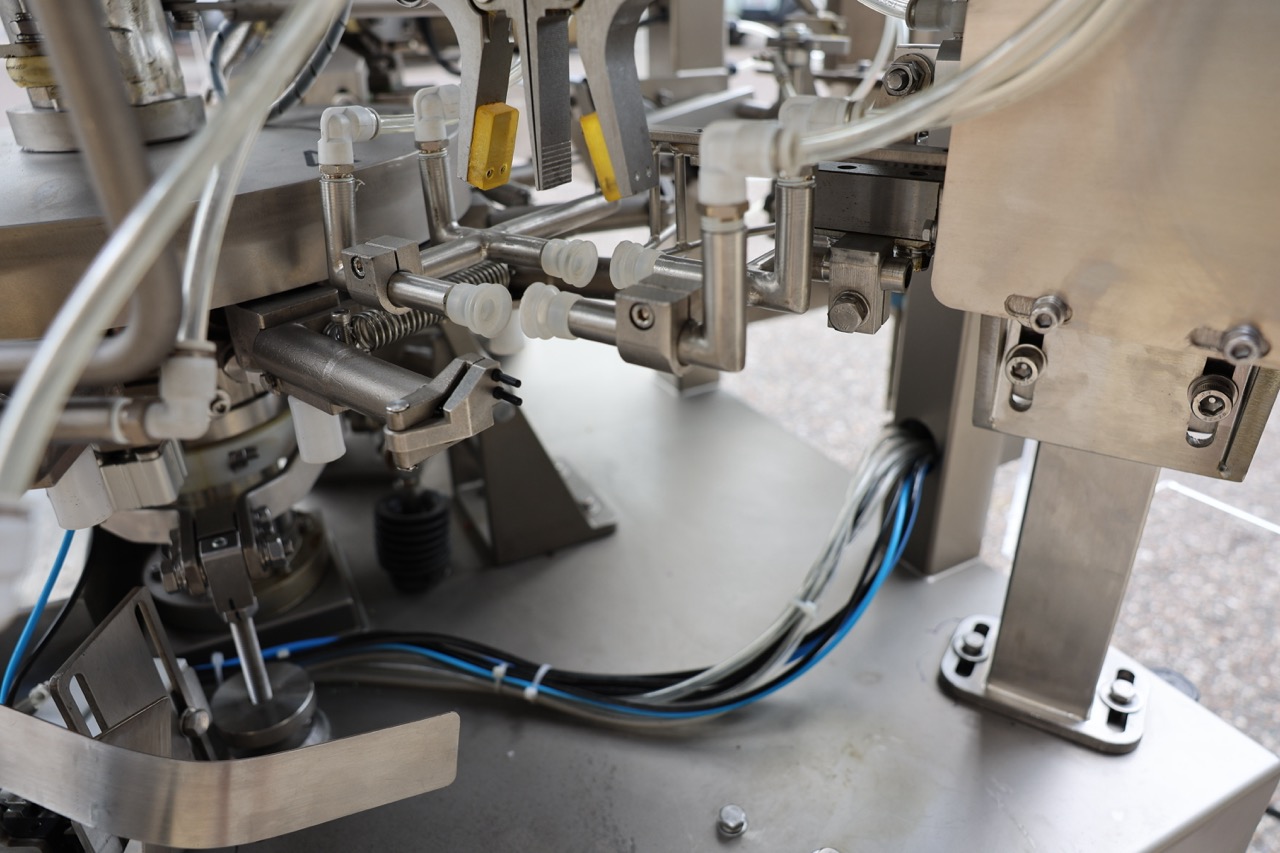

• Pouch & Loading Handling: Adjustable magazine handles premade stand-up and flat pouches (3.5″–7.0″ wide, up to 10″ height). Pneumatic suction cups grip and feed pouches into a 6-position, servo-driven carousel featuring HMI-adjustable clamp spacing for tool-free size changes.

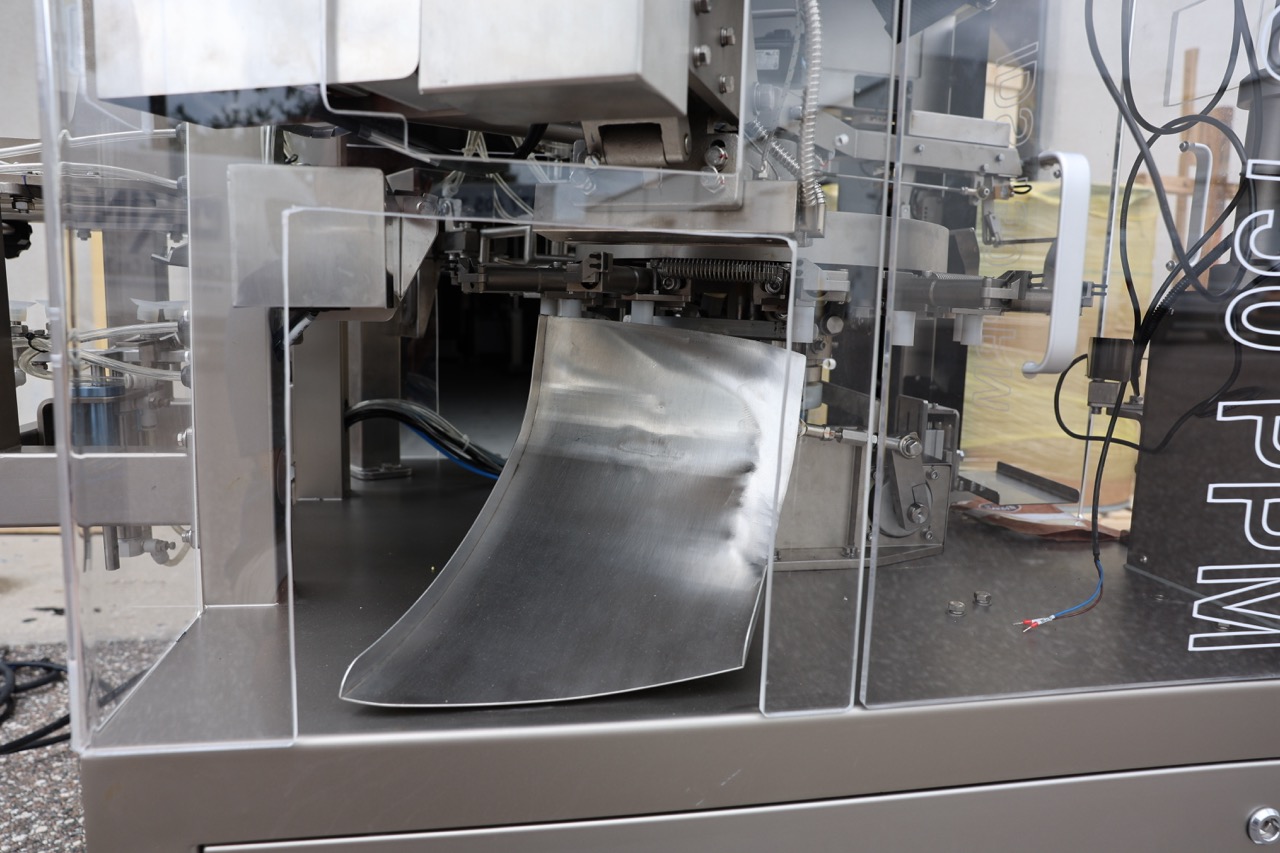

• Dosing & Sealing Assembly: Includes automated air-jet pouch opening, an intermediate funnel/dam to eliminate spill loss, a pneumatic tapping/settling station, and dual independent PLC-controlled heat-sealing stations.
• Safety & Monitoring: Optical/induction sensors prevent misfeeds by skipping fill and seal cycles if a pouch is missing, misaligned, or closed.
• Technical Specs: Speeds up to 30 pouches/min; target weights up to 500g avg; 220V / 3-Phase / 30 Amp (5.0 KVA); 25 CFM air input; 1,500 lbs machine weight.

Condition

• Equipment Status: Brand-new condition with zero production wear.

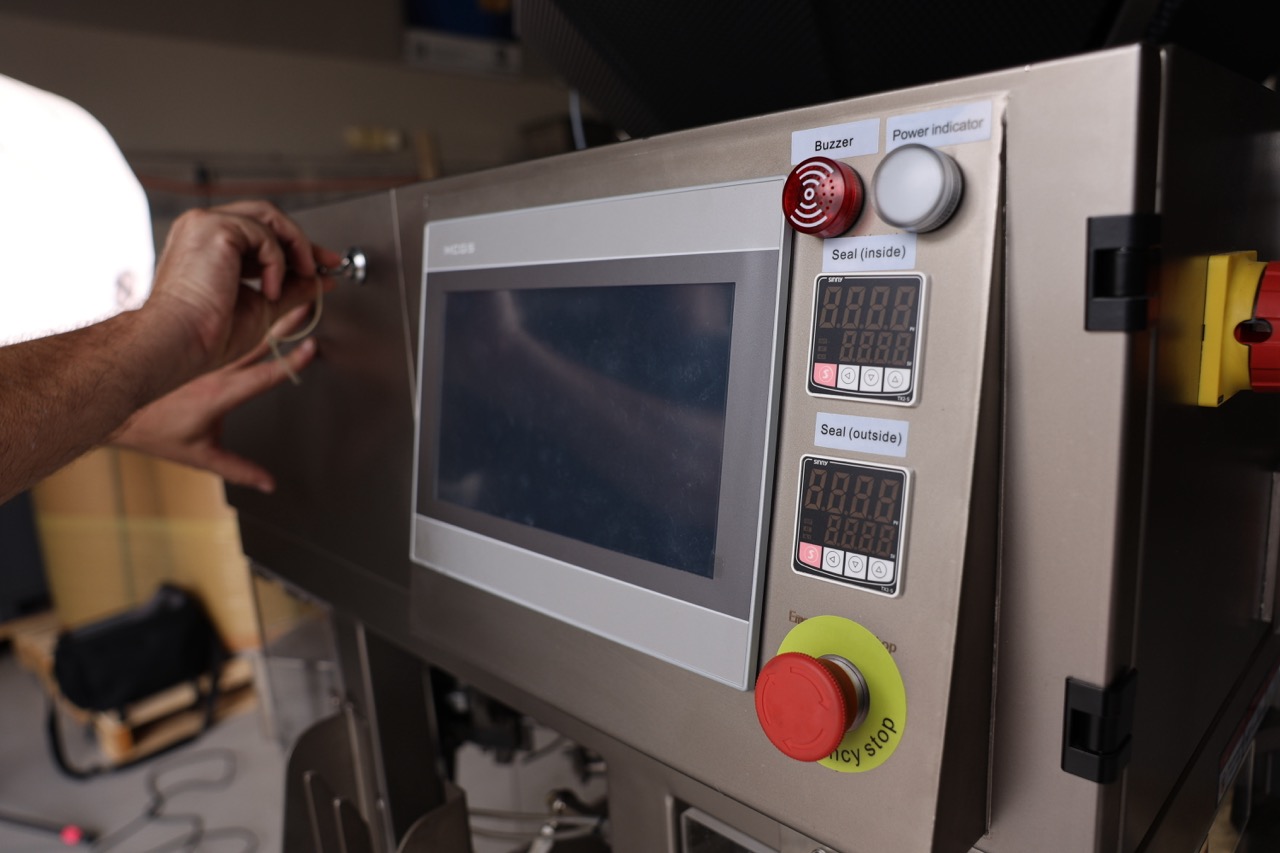

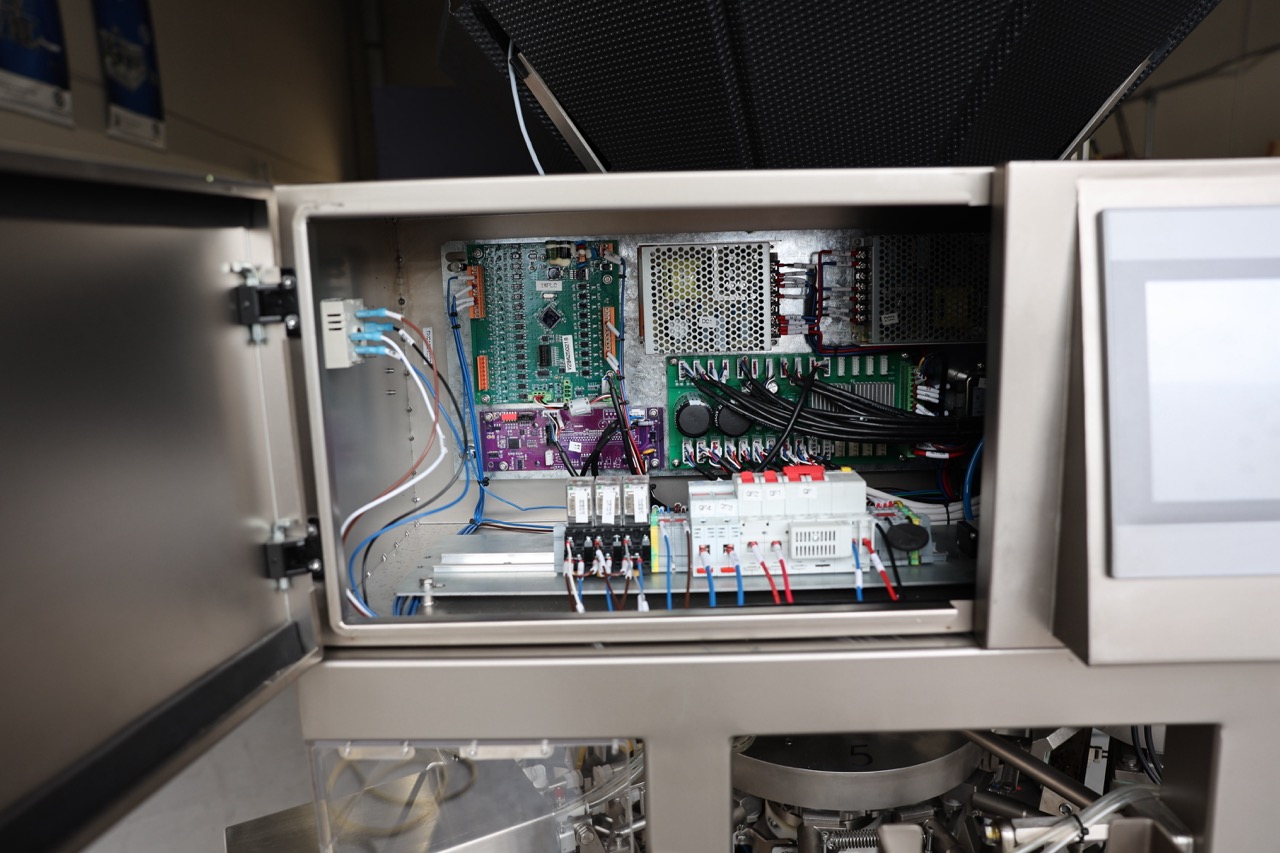

• Physical State: Clean 304 food-grade stainless steel construction, pristine hopper buckets, intact electrical enclosures, and clear touchscreen controls.
• Logistics & Support: Available for immediate shipment from Orlando, FL. Includes full on-site installation,operational training, and ongoing technical support.

‍
