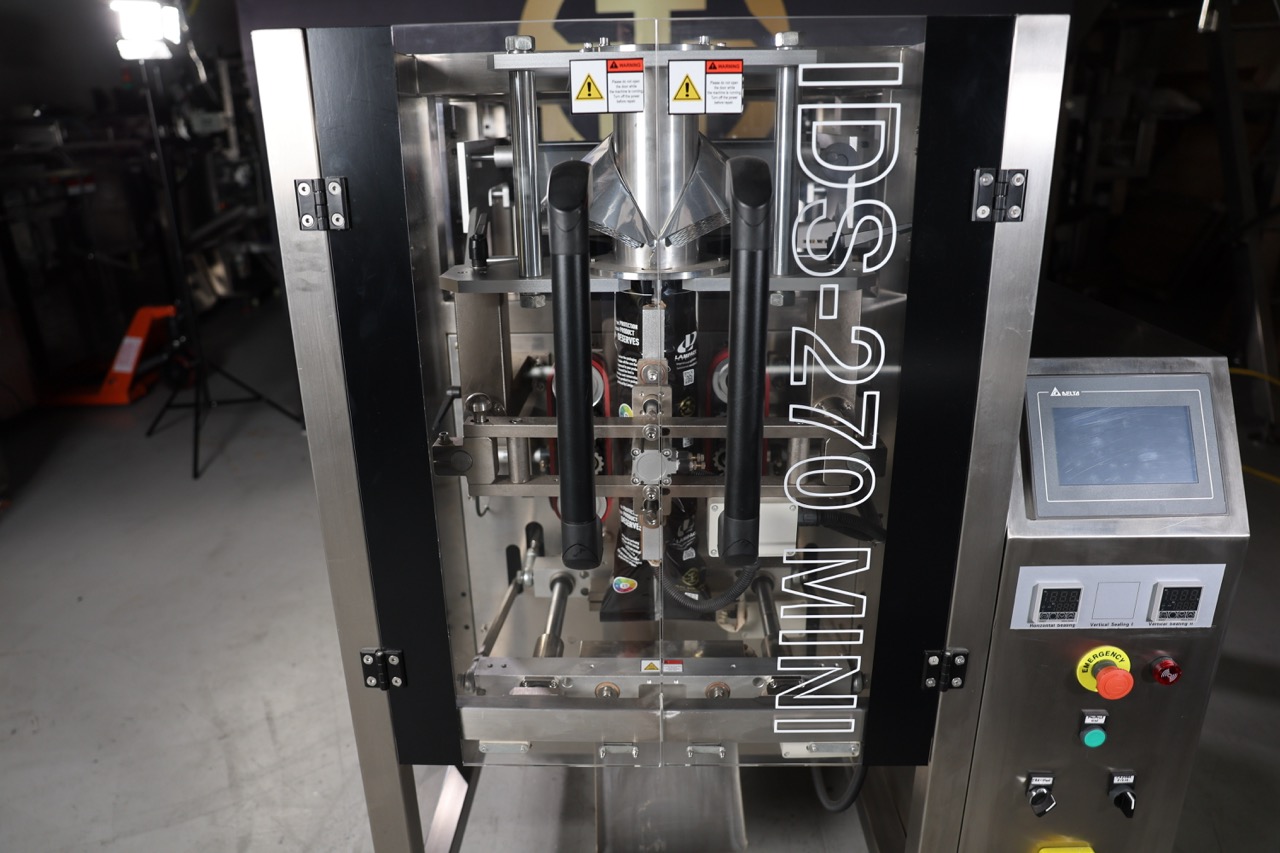

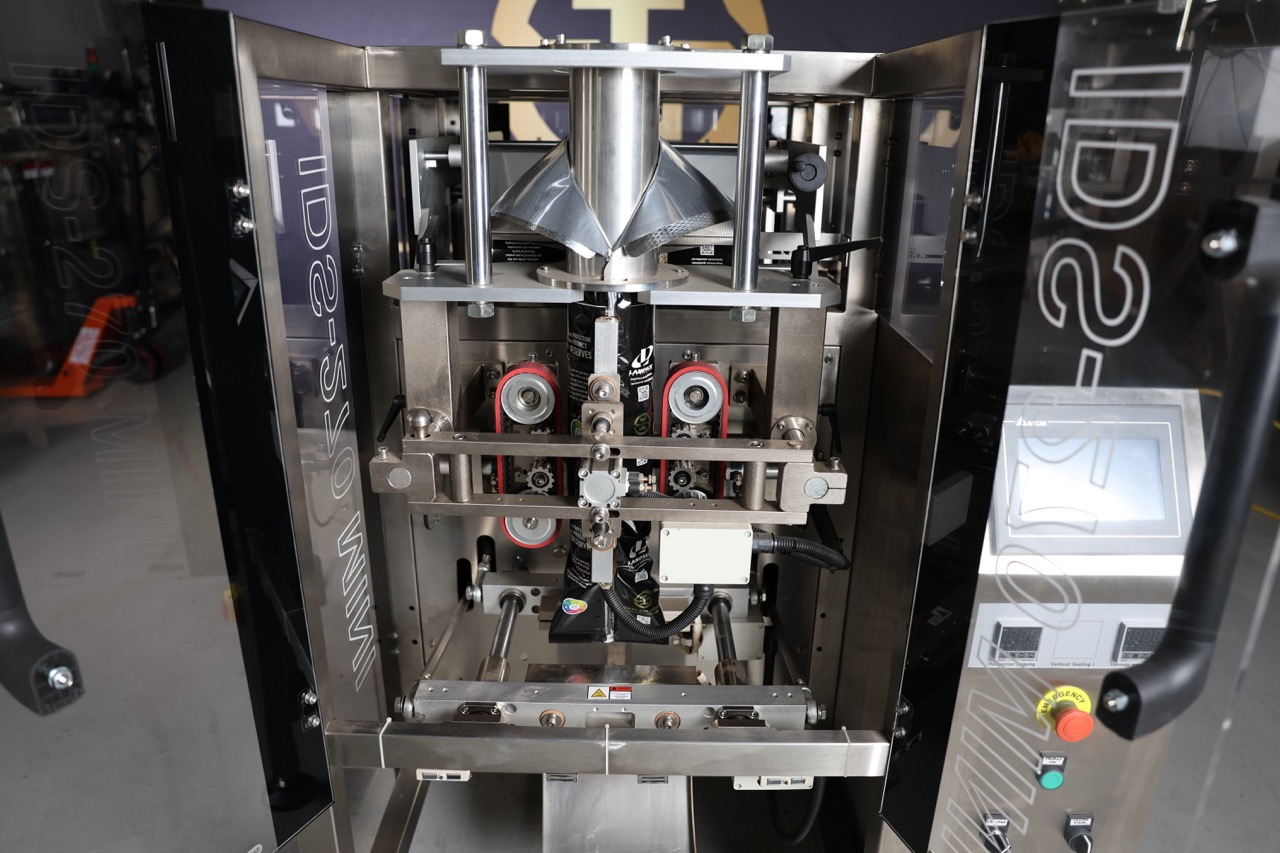

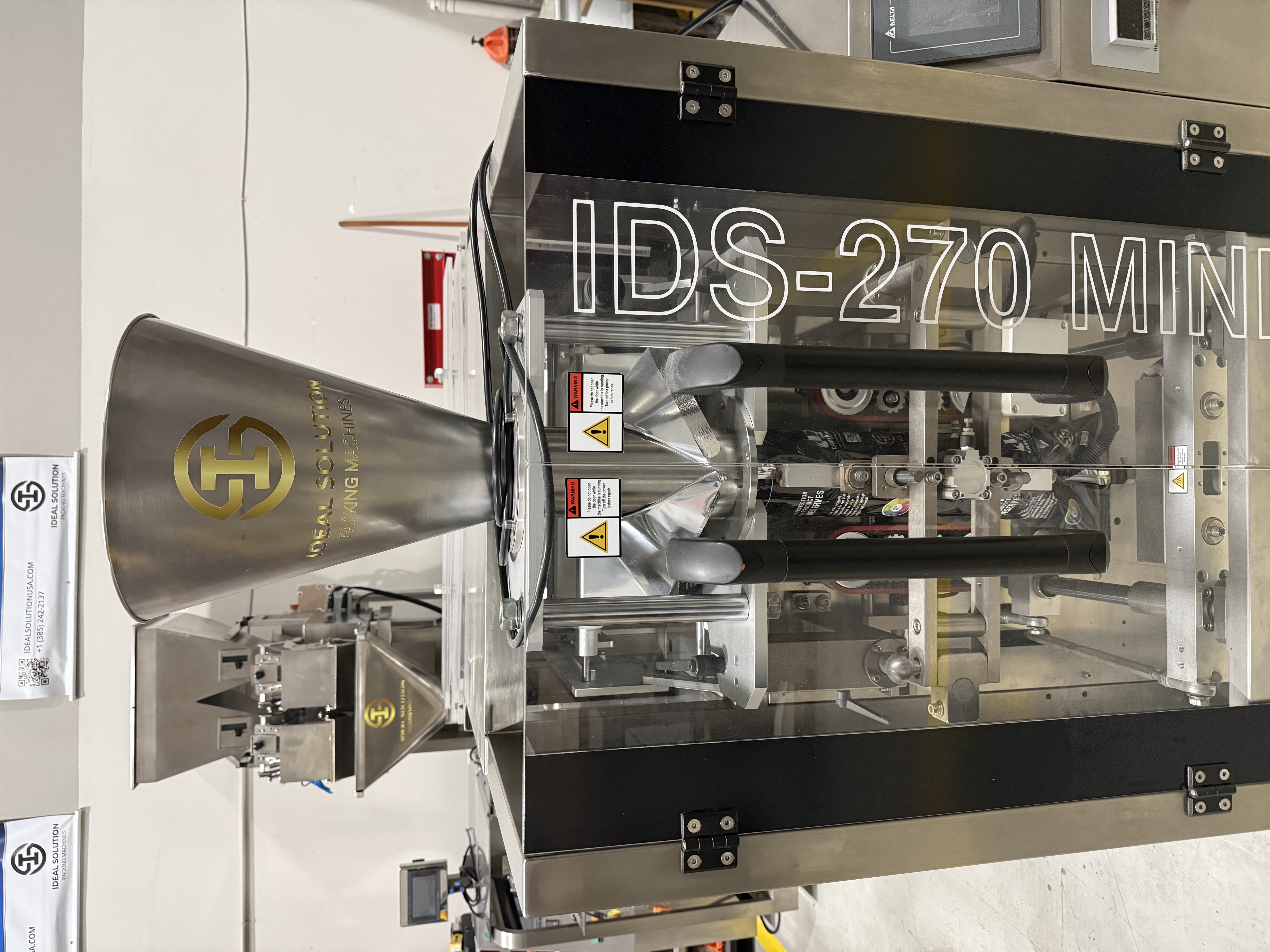

IDS 270 Mini Vertical Form-Fill-Seal Bagger

Description

• System Overview: Intermittent-motion vertical form-fill-seal (VFFS) machine designed for automatic forming,filling, and sealing of 3-side seal pillow-type bags. Engineered for packaging powders, granules, and small solid products.

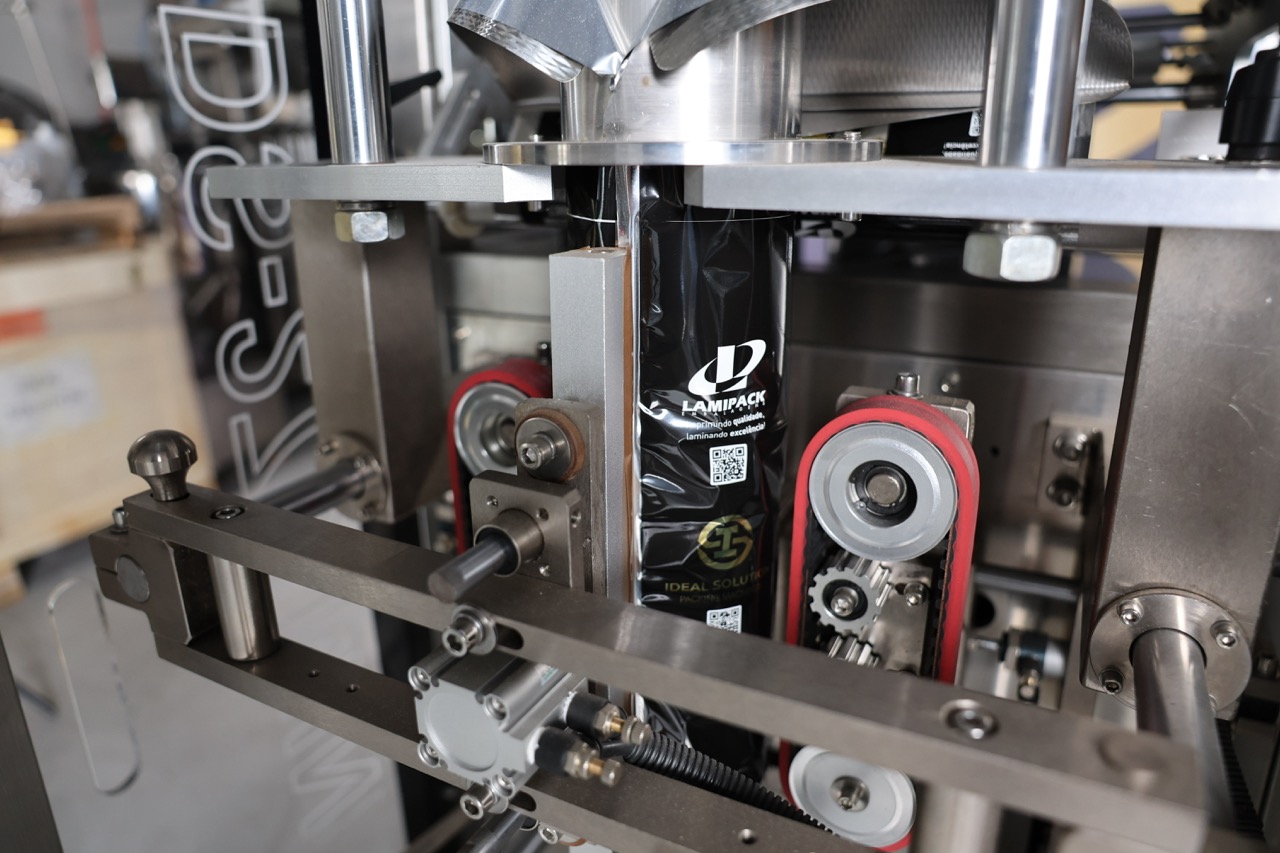

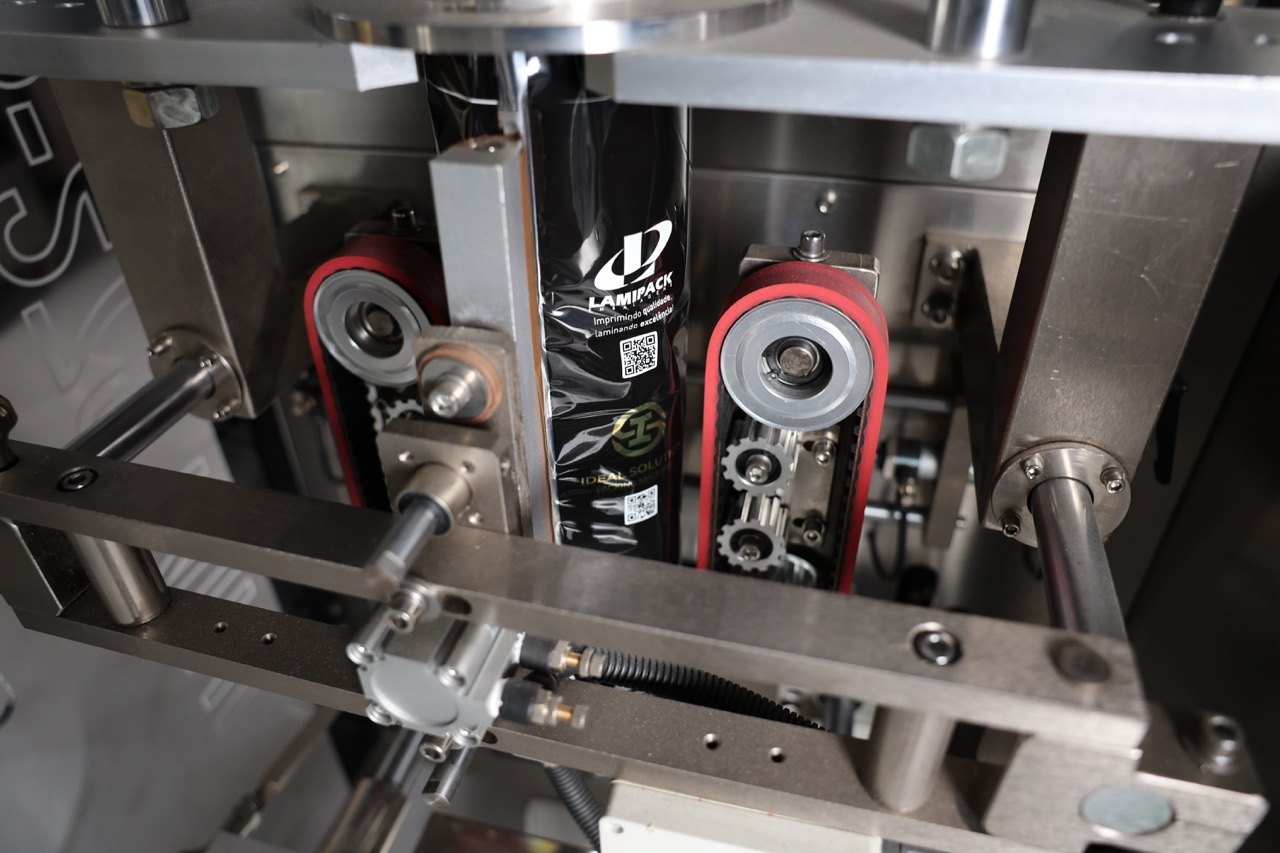

• Forming & Film Traction: Configured with a fixed setup handling pouch widths up to 7″ (180mm), with custom forming collars/tubes available for other size ranges. Features dual rubber-coated traction belts to advance film smoothly without slippage or stretching.

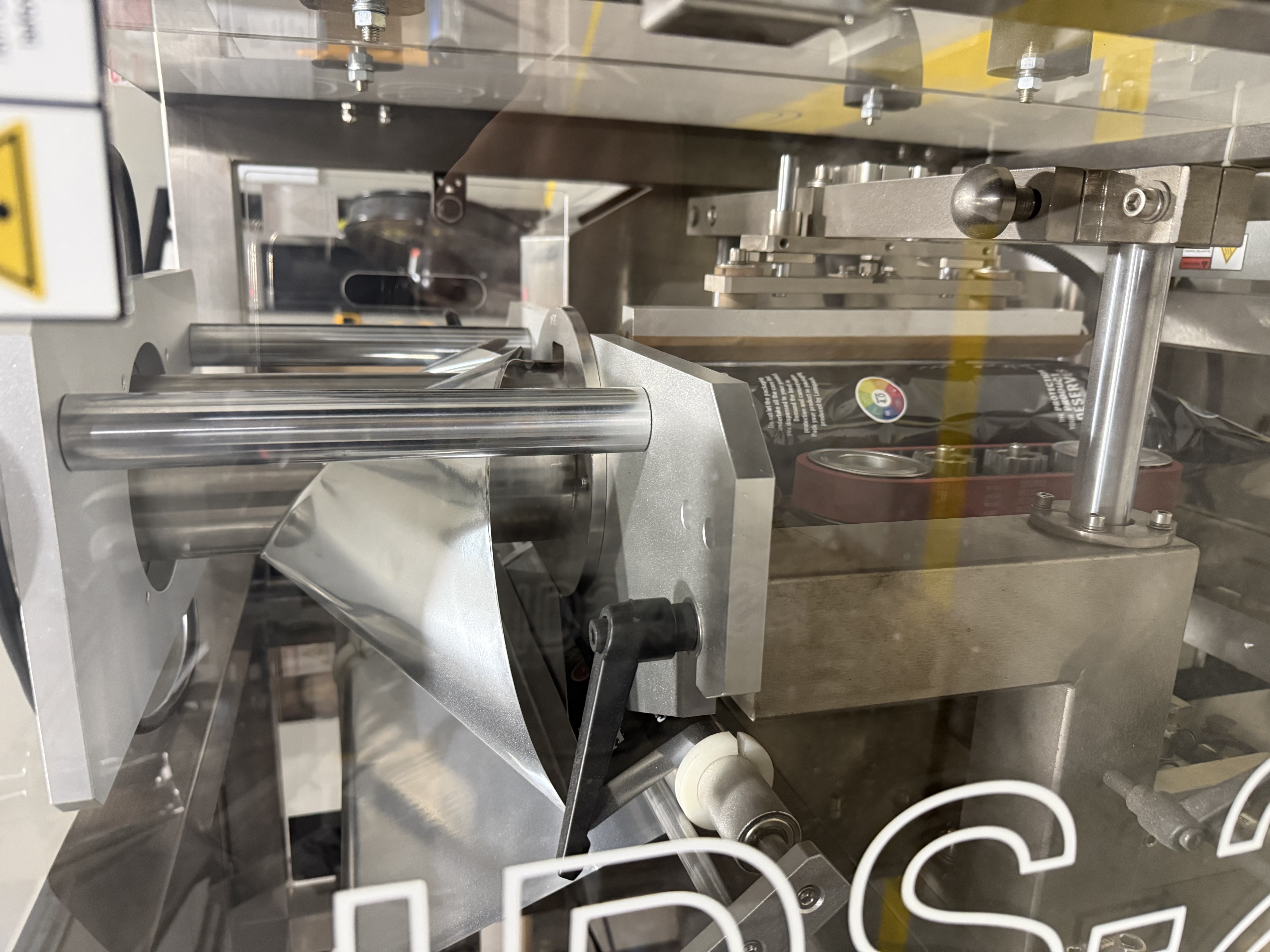

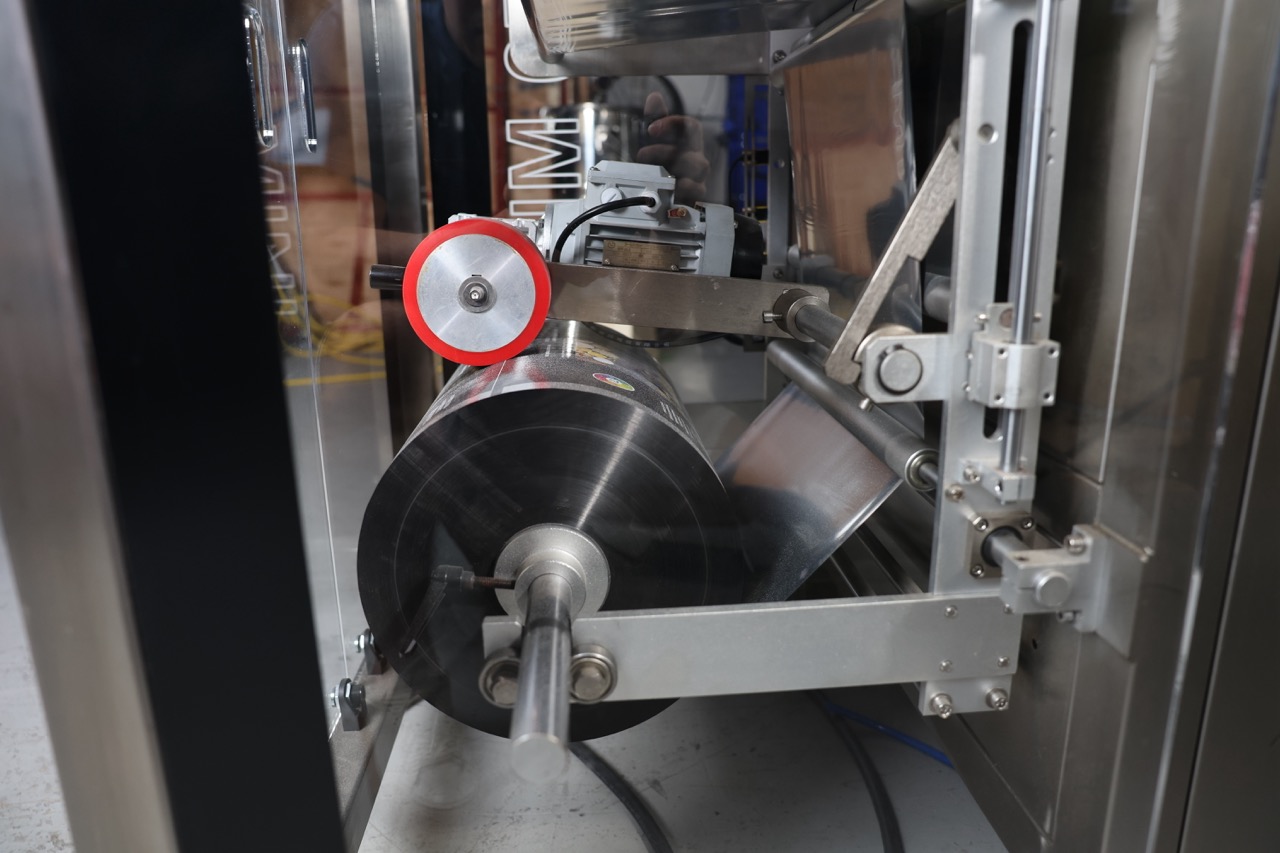

• Film Tension & Alignment: Equipped with an automatic film centering system, motorized film unwinding spindle,inline HP-241C coding printer assembly, and tensioning bars linked to induction sensors under PLC control.

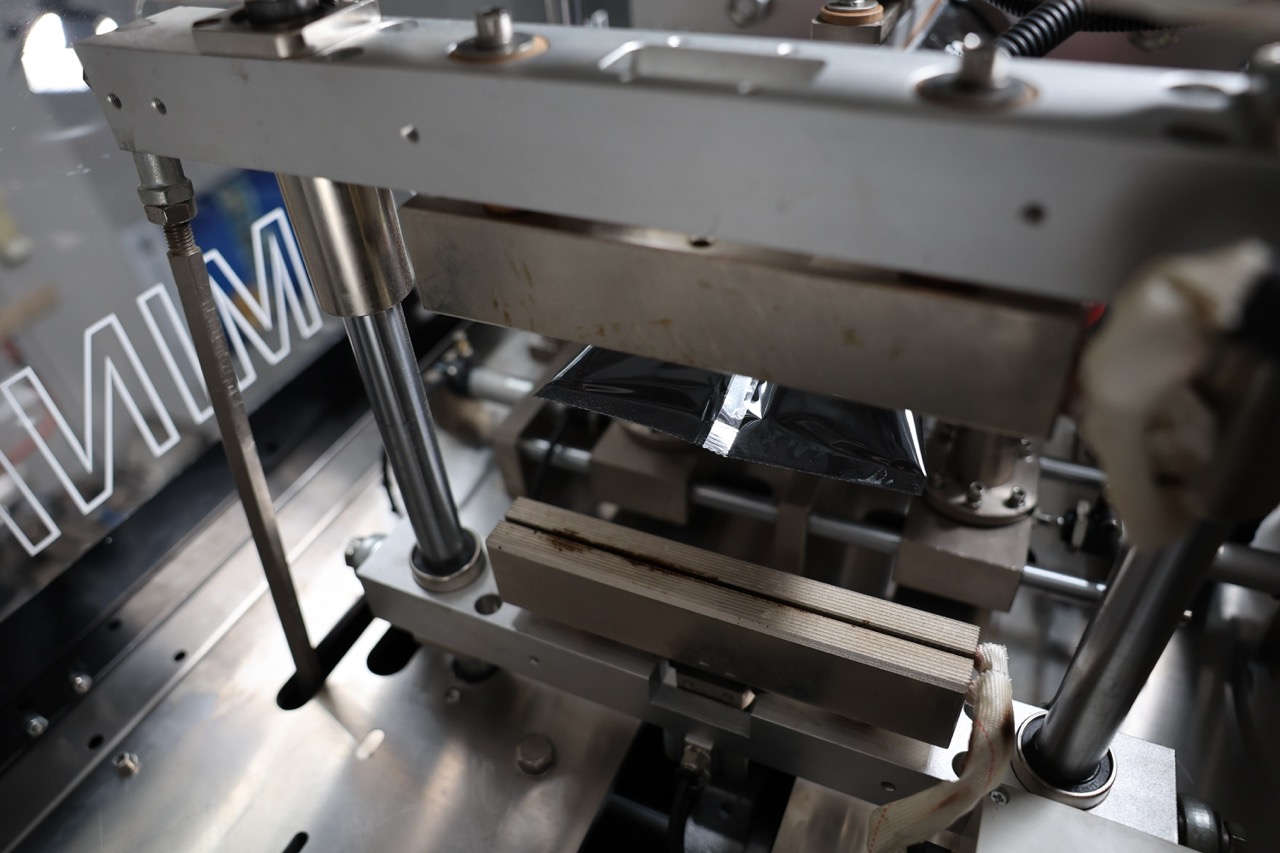

• Sealing & Cutting: Uses heated vertical bars for longitudinal seam sealing and heated horizontal jaws for cross seals, paired with a pneumatically actuated knife for clean sachet separation.

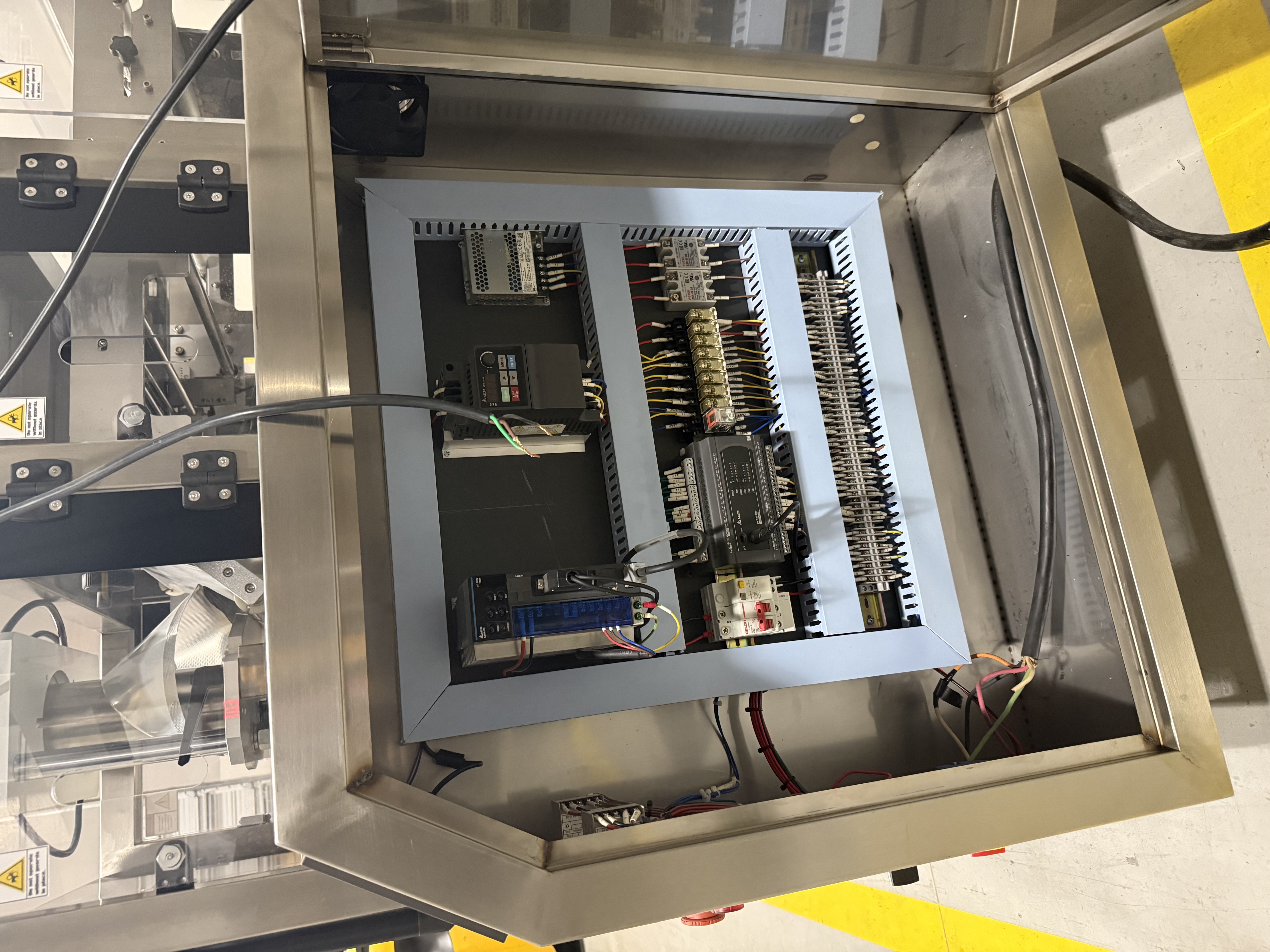

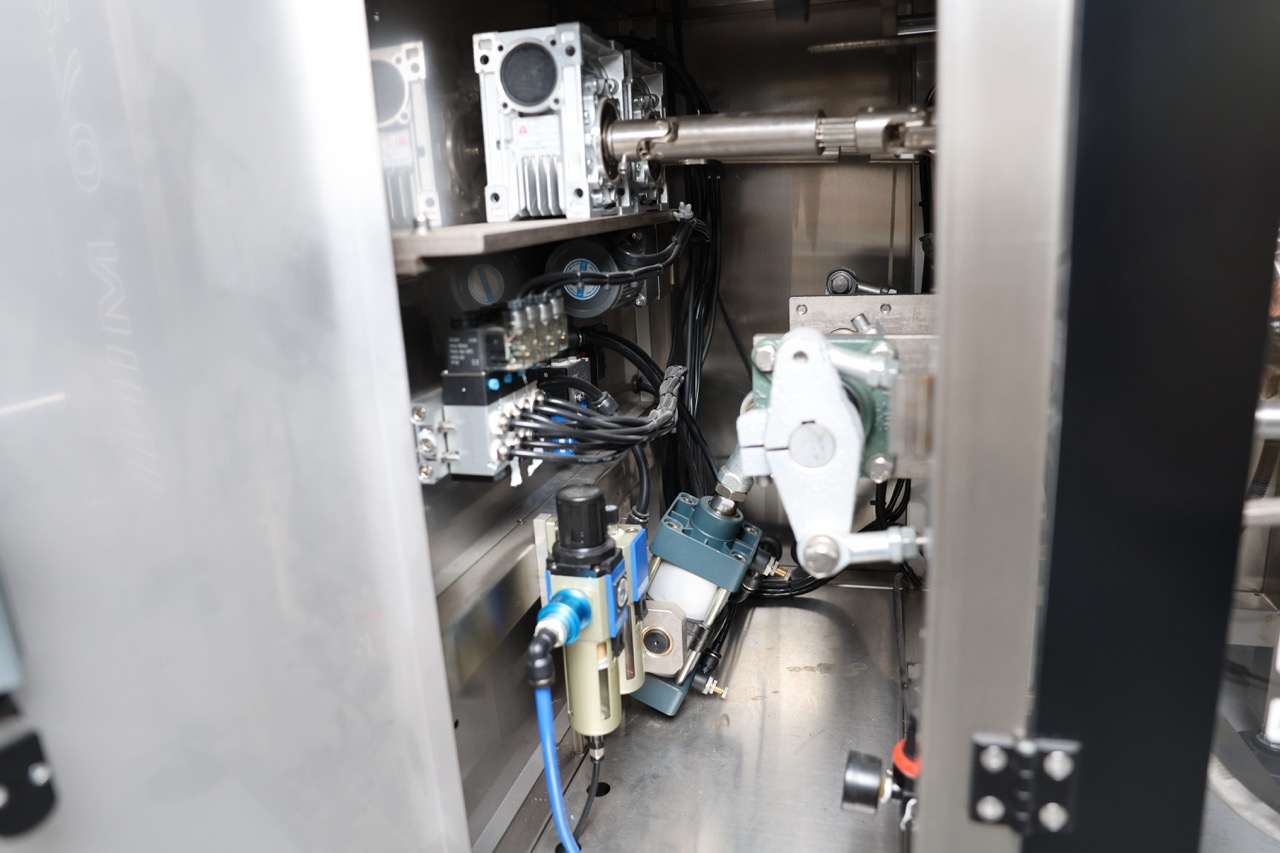

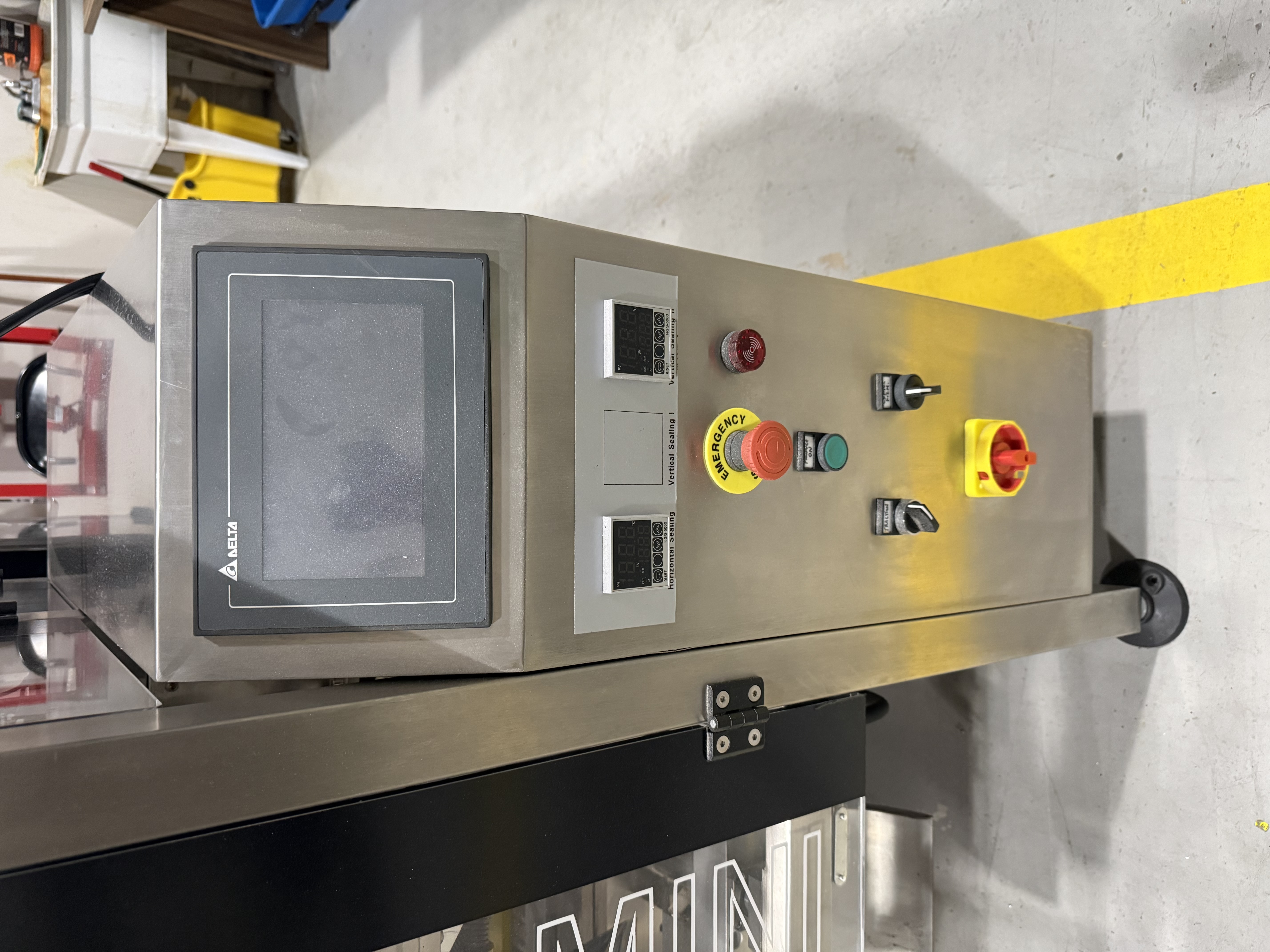

• Controls & Construction: Heavy-duty 304 food-grade stainless steel frame and contact parts. Operates via a Delta PLC controller with a touchscreen HMI, independent digital seal temperature controls, and an enclosed pneumatic control manifold.
• Technical Specs: Speeds up to 60 bags/min (product and weight dependent); air consumption of 600 L/min (~21.2 CFM); electrical requirements of 220V/380V (50/60 Hz). Does not include an integrated weigher.

Condition

• Equipment Status: Brand-new unit in pristine, turnkey operational condition.
• Physical State: Spotless 304 stainless-steel body, immaculate rubber film traction belts, clean drive gears, clear protective enclosure panels, and fully wired, untouched electrical and pneumatic cabinets.
• Logistics & Support: Available for immediate shipment from Orlando, FL. Includes complete on-site installation,end-customer operational training, and long-term technical support.

‍
