IDS 180 PP Linear Premade Pouch Filler with 2-Head Weigher

Description

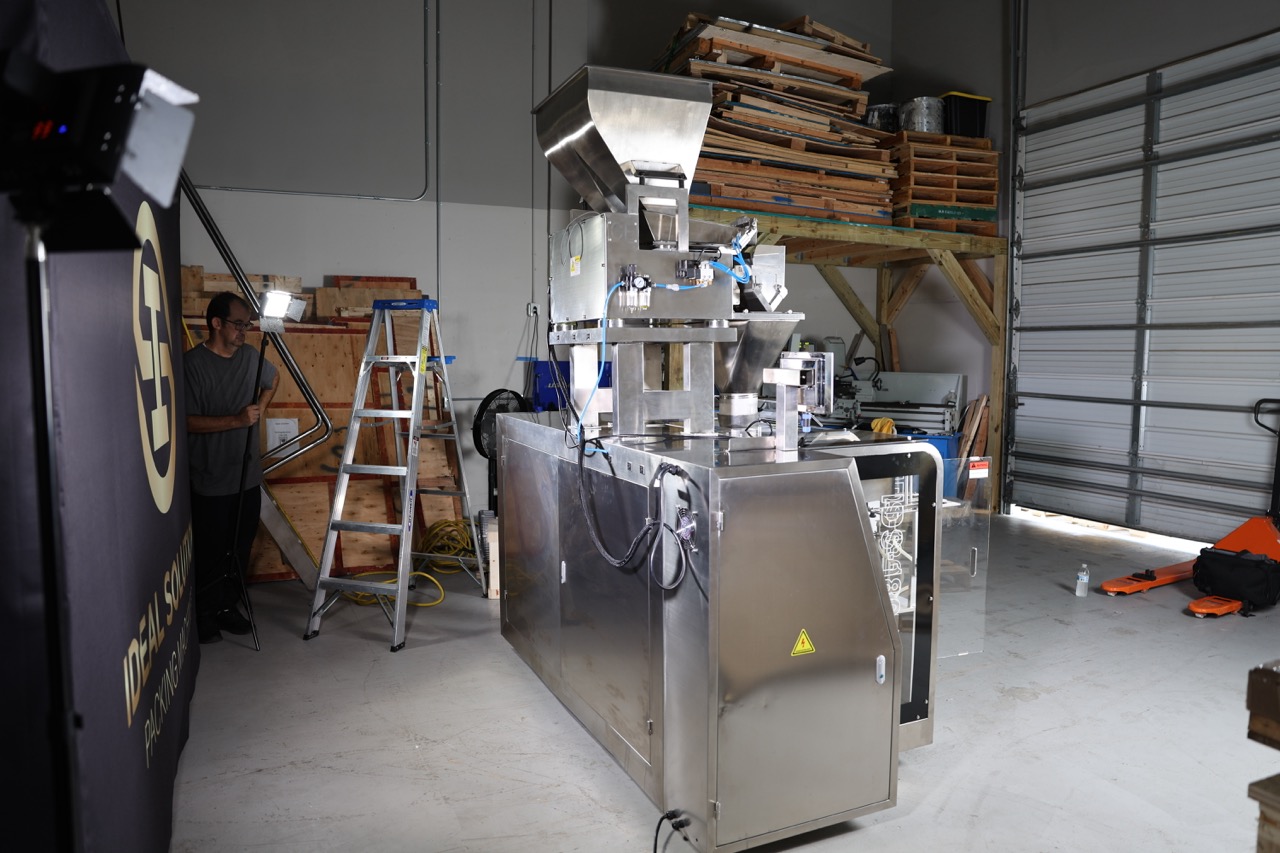

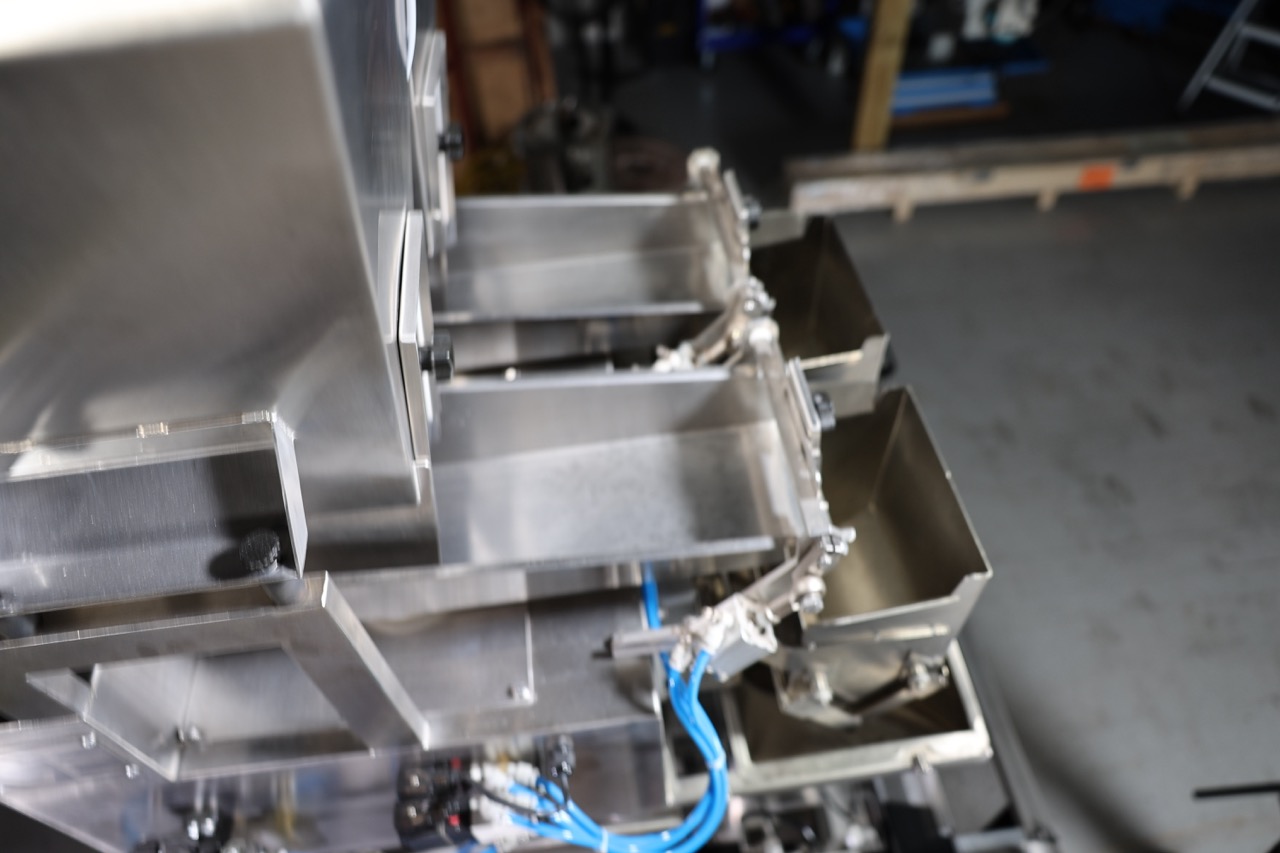

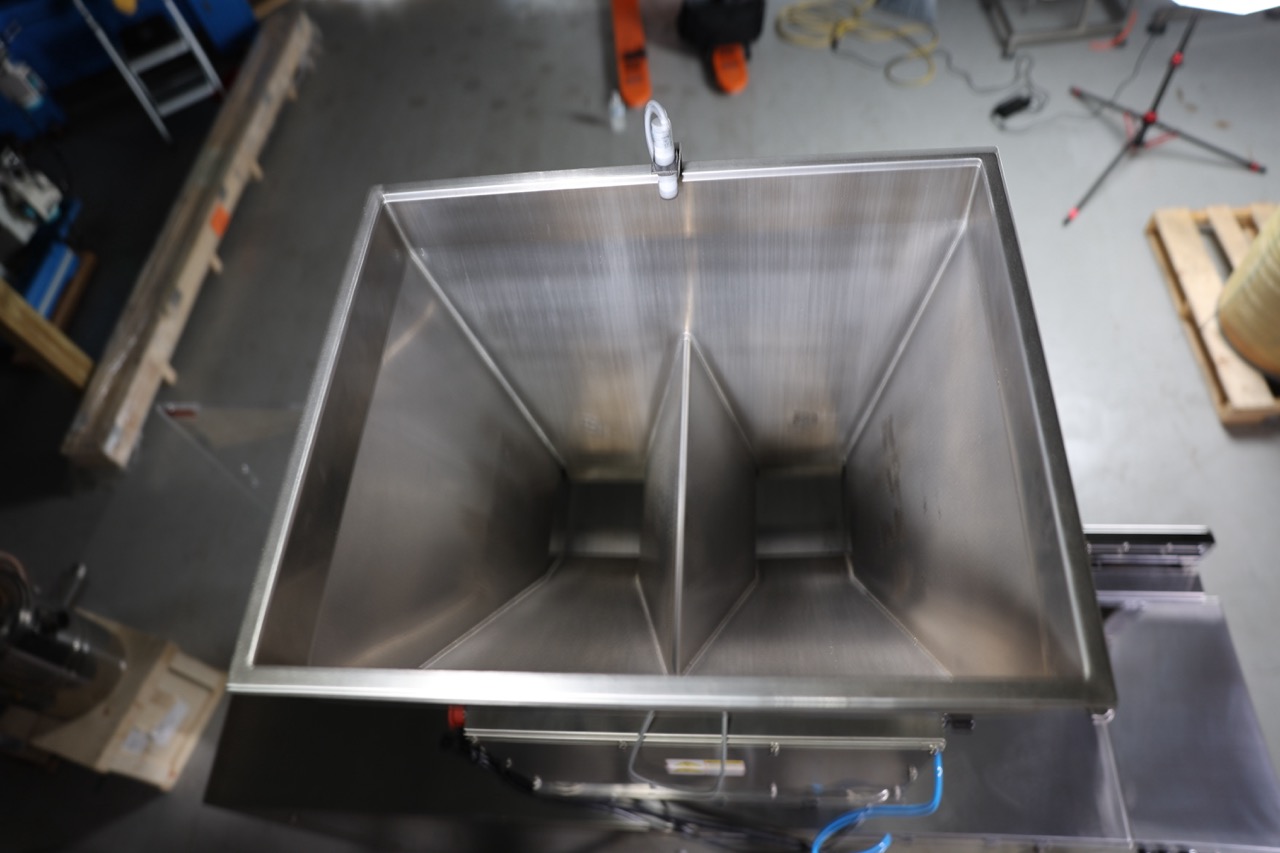

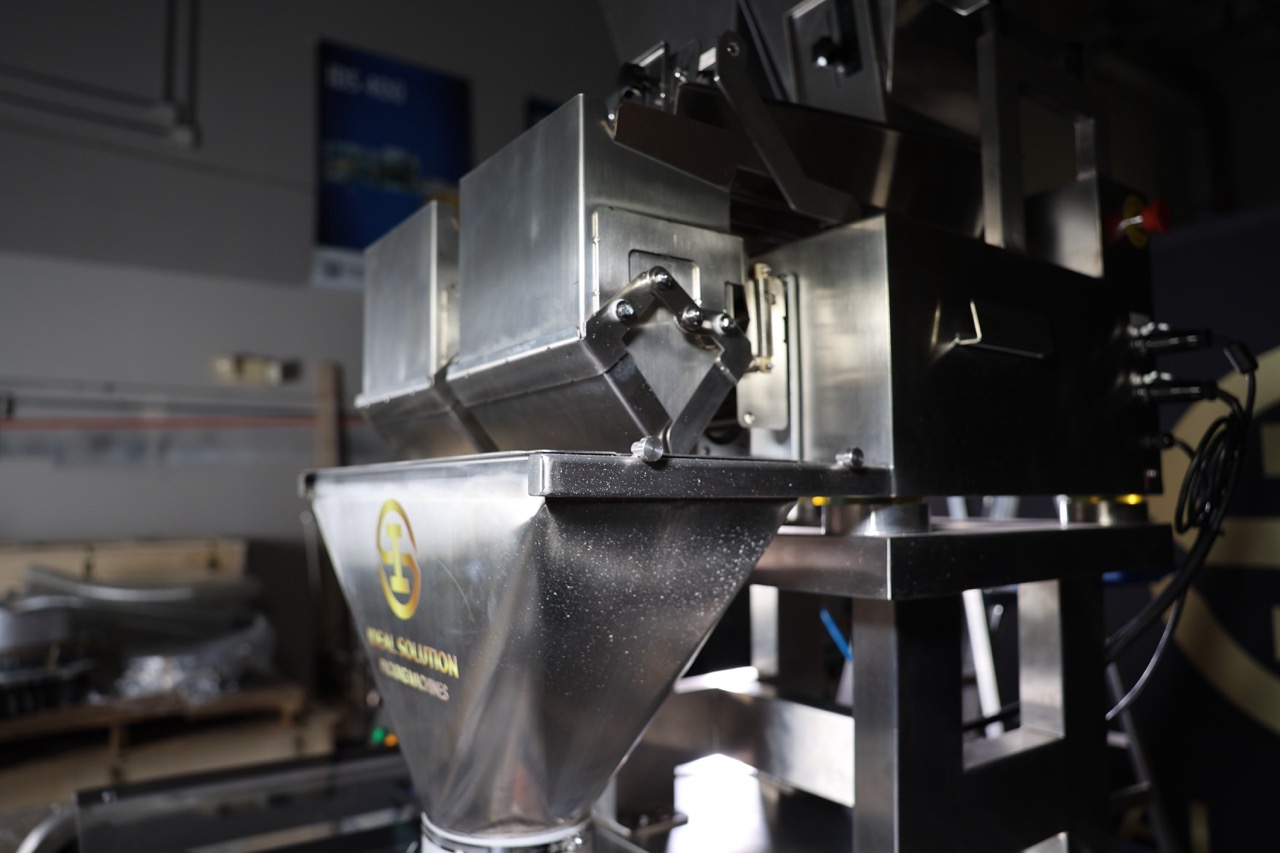

• System Overview: Horizontal, single-station linear premade pouch machine paired with an integrated 2-head linear weigher (6L hopper volume, dimpled surface) designed for packaging solids, powders, and granular products.

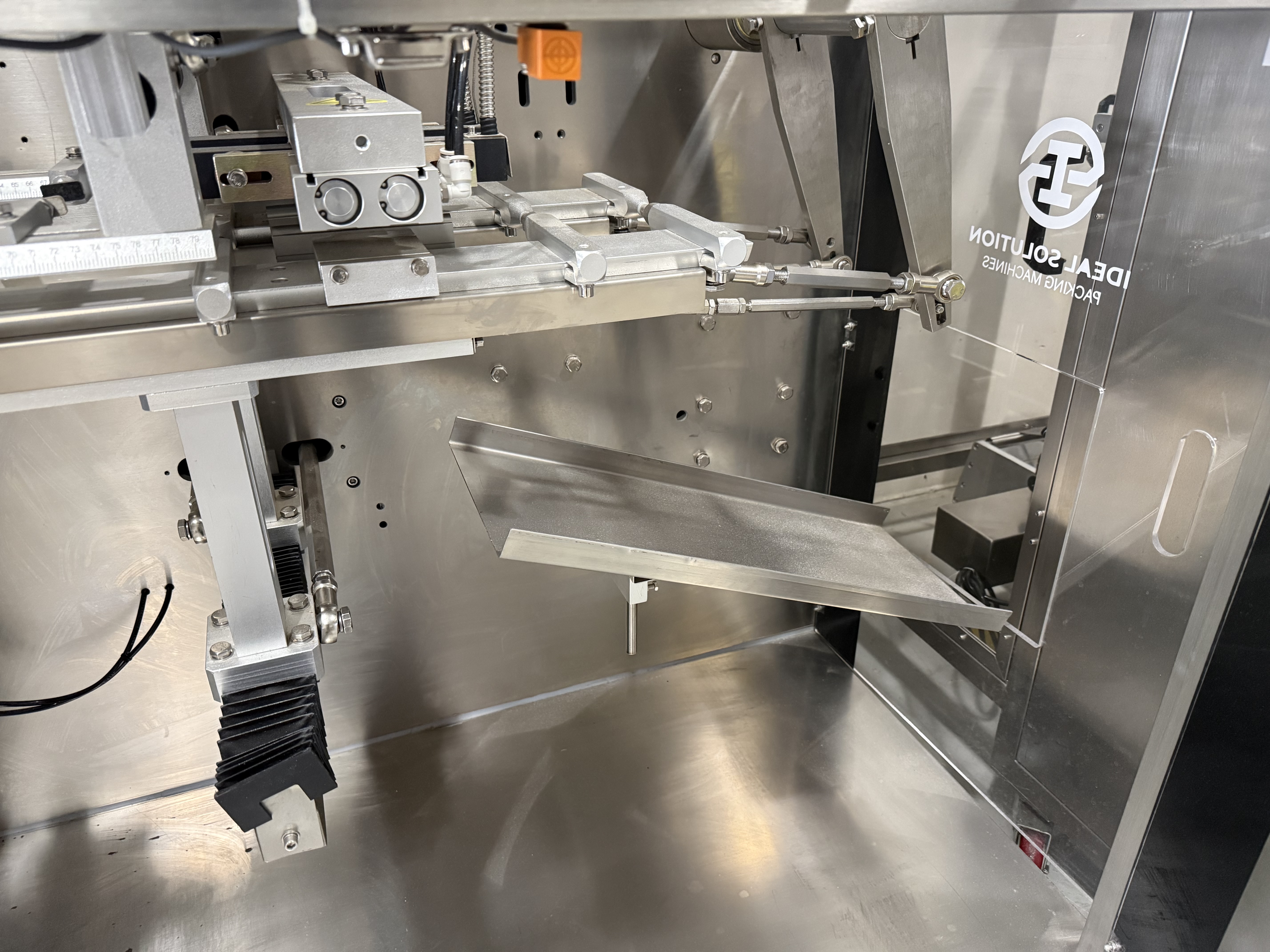

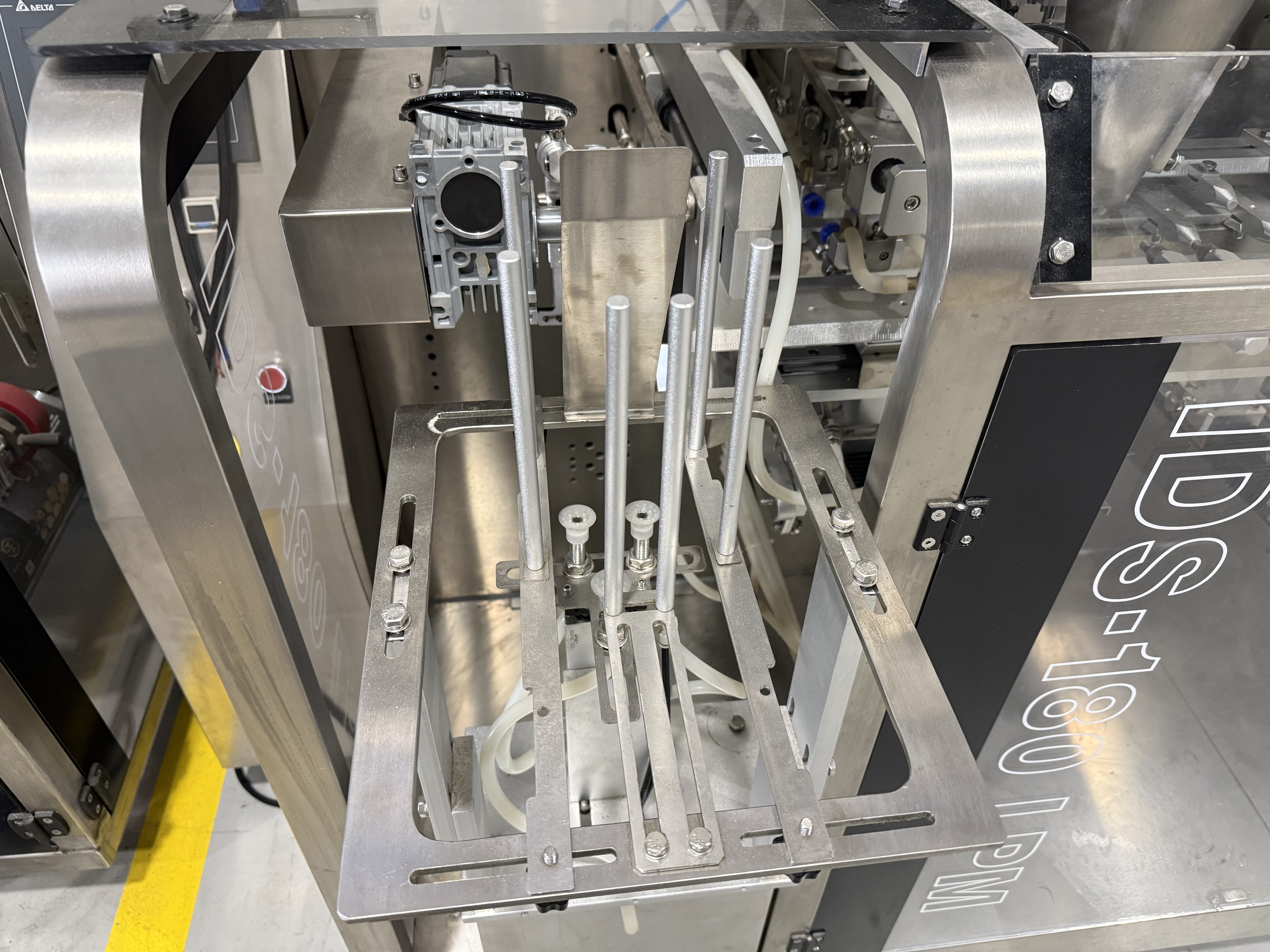

• Pouch Handling & Loading: Features an adjustable magazine unit holding 60–100 pouches, accepting premade stand-up pouches 4″ to 7″ wide and up to 10″ in height. Uses a pneumatic suction-cup retrieval system on a 90° rotating mechanical arm to extract and position bags into the dosing zone.

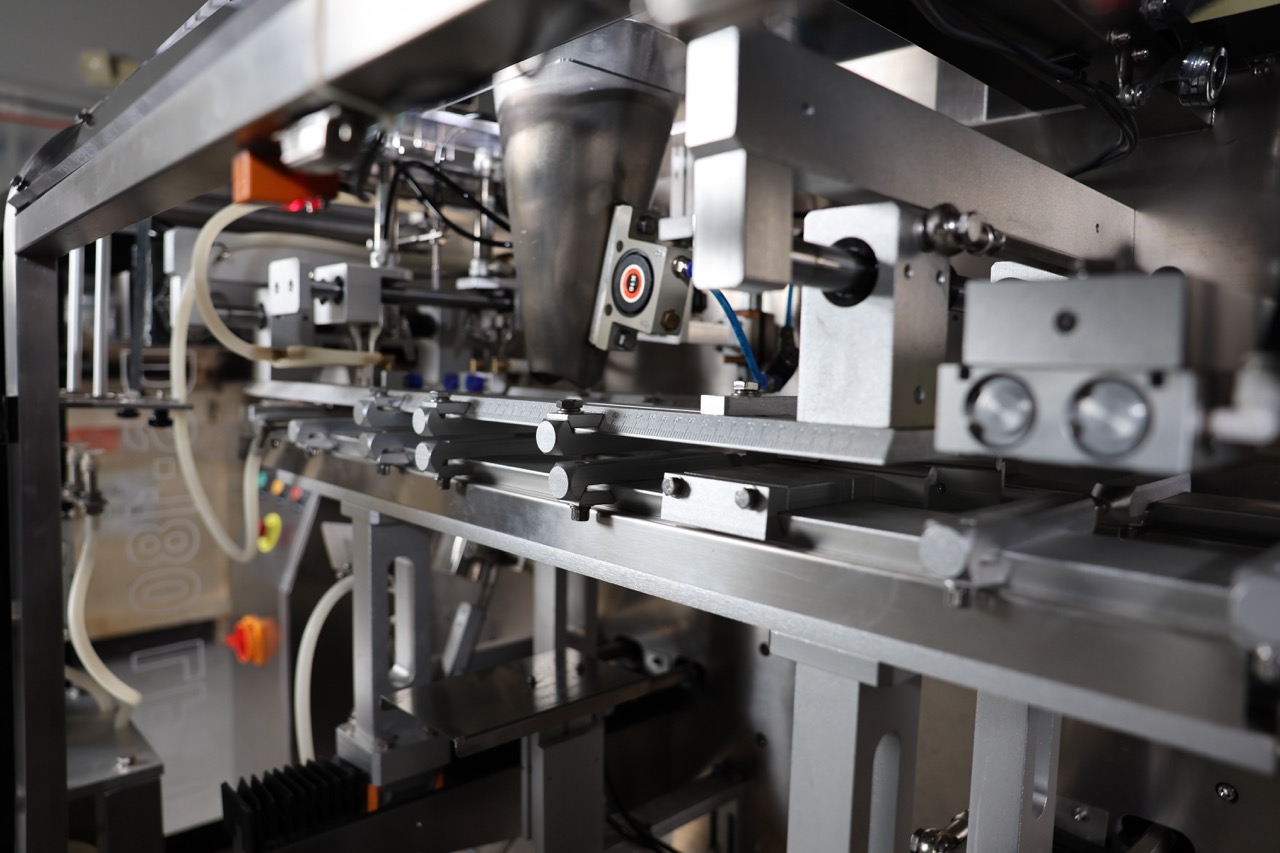

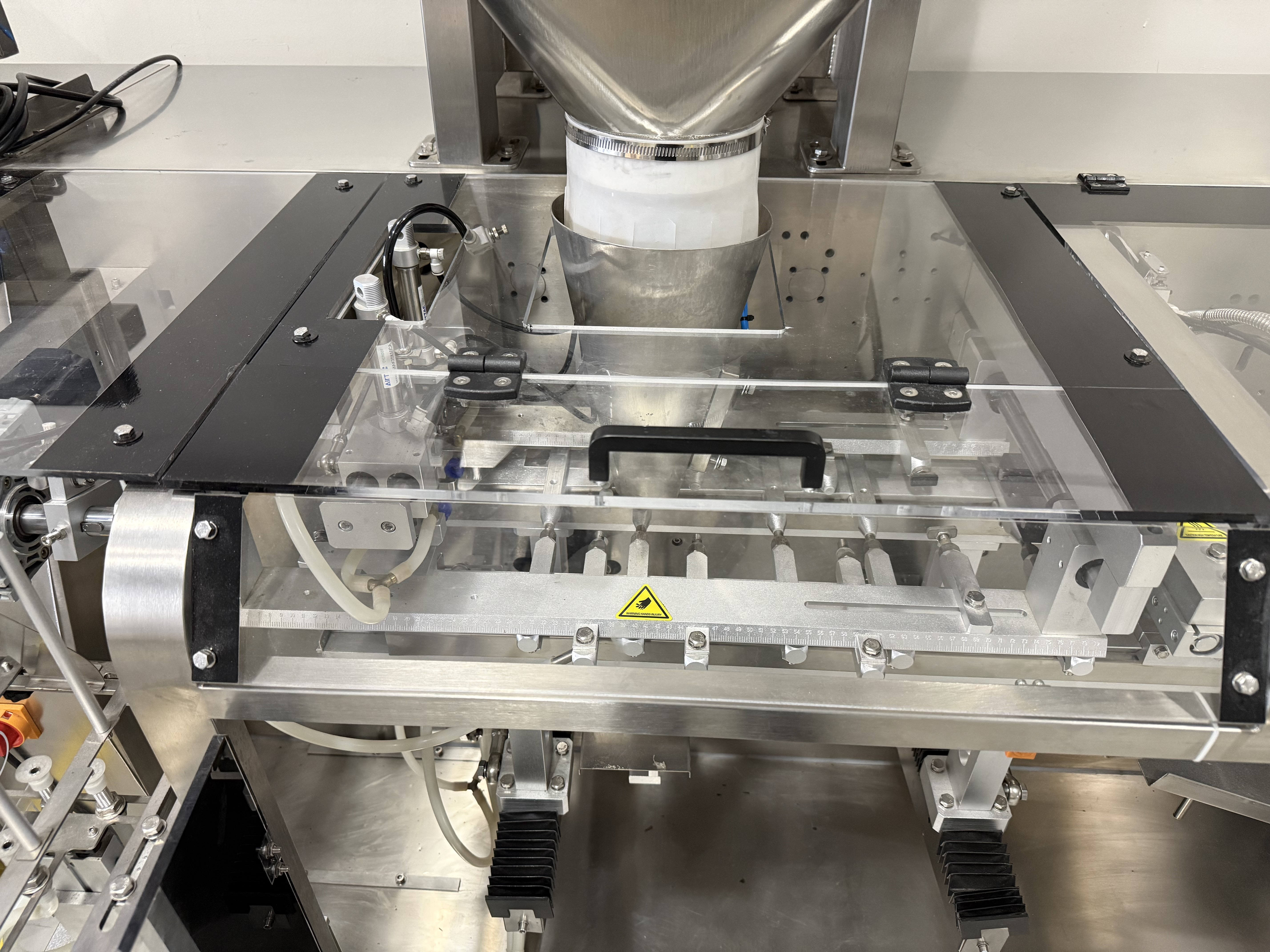

• Filling, Sealing & Discharge: Opens pouches using dual suction cups and an auxiliary drop funnel, holding them upright with heavy-duty clamps during dosing. Includes pneumatically actuated heated sealing bars with individual digital temperature control and an integrated modular plastic belt discharge conveyor.

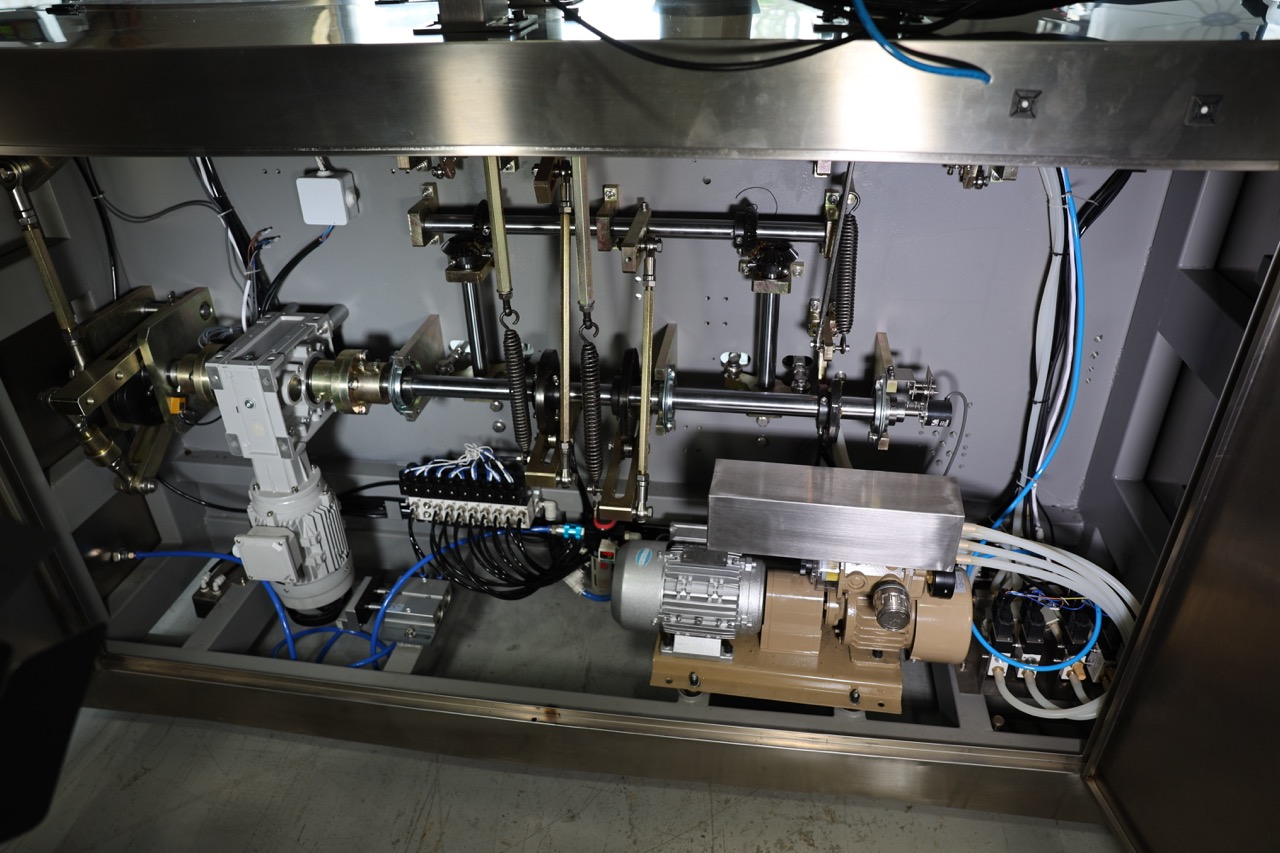

• Automation & Construction: Built with heavy-duty food-grade AISI 304L stainless steel framing and polycarbonate safety guarding. Driven by a PLC control system with a 7″ HMI touchscreen, servomotors,frequency inverters, and IP-65 electrical/pneumatic protection.
• Technical Specs: Speeds up to 15 bags/min; weighing range up to 500g average (capable up to 1kg/2kg capacity); 220V / 3-Phase / 30 Amp (4.0 KVA); 25 CFM air input; approximate unit weight of 2,500 lbs.

Condition

• Equipment Status: Brand-new unit in pristine, turnkey operational condition.
• Physical State: Spotless 304L stainless-steel framework, immaculate dimpled-surface linear scale hoppers, clear polycarbonate safety doors, sharp Delta touchscreen interface, and clean internal pneumatic/electrical wiring.
• Logistics & Support: Available for immediate shipment from Orlando, FL. Includes complete on-site installation,end-customer operational training, and long-term technical support.

‍
